Additional battery for BMW 7 Series G12 725Ld (2017)

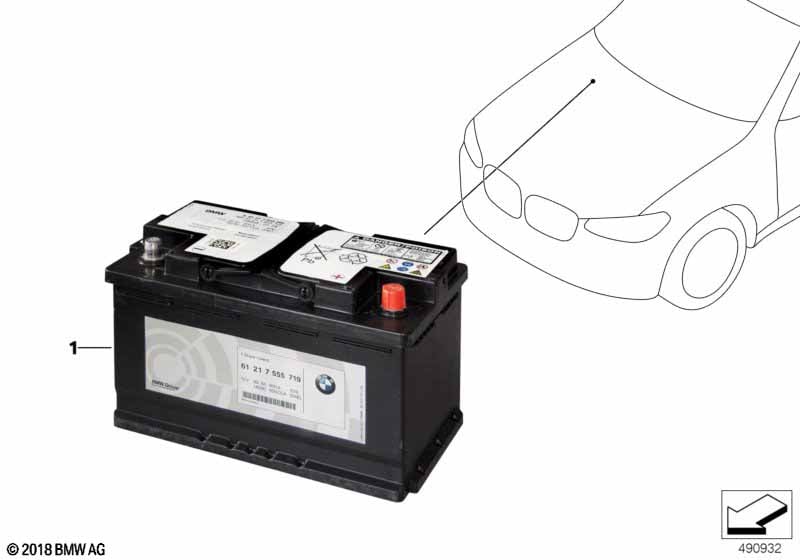

This Additional battery technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 725Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Original BMW AGM-battery | 60 AH | 1 | 61217604802 | Shop at ECS Tuning | |||||
| 01 | Original BMW AGM-battery | 50 AH | 1 | 61219364597 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 01 | Original BMW AGM battery | 50 AH CHINA | 1 | 61215A67278 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 725Ld Additional battery?
- This technical diagram illustrates the Additional battery within the Vehicle electrical system group for the 7 Series G12 725Ld produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Original BMW AGM-battery (Part #61217604802).
- Which models use the hardware listed in this Additional battery?
- The hardware and components featured in the Additional battery are specific to the 7 Series G12 725Ld produced during 2017. These technical specifications ensure that parts like the Original BMW AGM-battery (61217604802) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Additional battery assembly?
- Each item in the Additional battery corresponds to the numbered list below the illustration. For the 7 Series G12 725Ld, you can identify the Original BMW AGM-battery by locating its position on the schematic, which then links to the official BMW part number 61217604802 for the Vehicle electrical system section.
