Rep.cable f.main wiring harness - rear for BMW iX3 G08 BEV iX3 (2021)

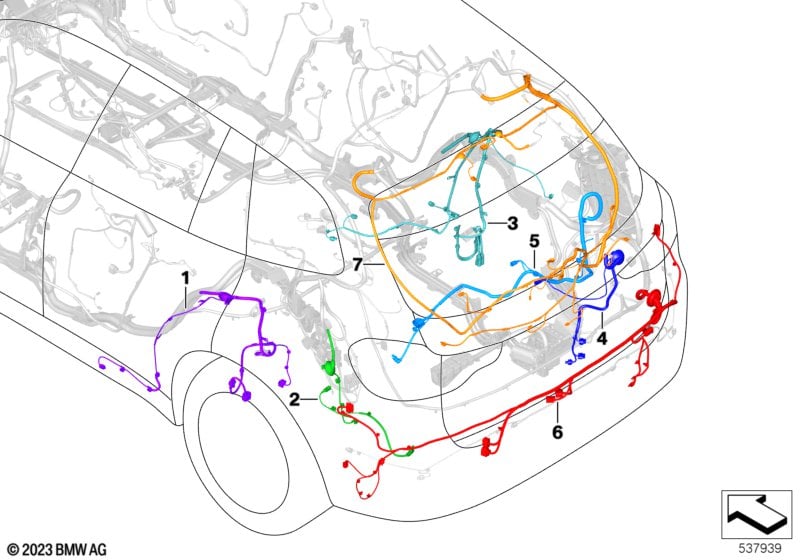

This Rep.cable f.main wiring harness - rear technical drawing provides a detailed breakdown of the assembly for the iX3 G08 BEV iX3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rep. wire loom, wheelhousing, rear left | 1 | 61115A3D117 | Shop at ECS Tuning | ||||||
| 03 | Rep. wire loom, wheelhousing, rear right | 1 | 61115A3D118 | Shop at ECS Tuning | ||||||
| 06 | Repair wiring harness grommet rear | 1 | 61115A3D114 | Shop at ECS Tuning | ||||||
| 07 | Repair wiring set for trunk lid | 1 | 61115A30A36 | Shop at ECS Tuning | ||||||
| 07 | Rep. wiring harness tail light outer | 1 | 61115A30A37 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW iX3 G08 BEV iX3 Rep.cable f.main wiring harness - rear?
- This technical diagram illustrates the Rep.cable f.main wiring harness - rear within the Vehicle electrical system group for the iX3 G08 BEV iX3 produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Rep. wire loom, wheelhousing, rear left (Part #61115A3D117).
- Which models use the hardware listed in this Rep.cable f.main wiring harness - rear?
- The hardware and components featured in the Rep.cable f.main wiring harness - rear are specific to the iX3 G08 BEV iX3 produced during 2021. These technical specifications ensure that parts like the Rep. wire loom, wheelhousing, rear left (61115A3D117) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rep.cable f.main wiring harness - rear assembly?
- Each item in the Rep.cable f.main wiring harness - rear corresponds to the numbered list below the illustration. For the iX3 G08 BEV iX3, you can identify the Rep. wire loom, wheelhousing, rear left by locating its position on the schematic, which then links to the official BMW part number 61115A3D117 for the Vehicle electrical system section.
