Plug connection from A11*1B-> A218*6B for BMW 7 Series G12 740Li (2019)

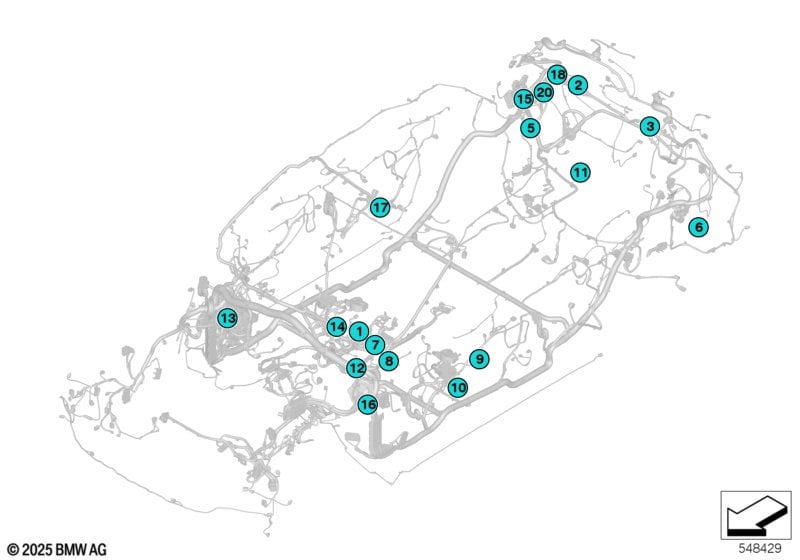

This Plug connection from A11*1B-> A218*6B technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plug/socket housings listed below serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| A14*1B - Light operating unit | ||||||||||
| 08 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| A17*1B - Drive for Soft Close driver's door |
||||||||||
| 09 | Socket housing | 6 POL. KOD. B | 1 | 61139275058 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Cont.bush.MCON 1,2 sg.cond.seal w/cable | 0,5-0,75MM² AG | 2 | 12520056374 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCON 1.2 with cable | 0,25-0,35MM² AG | 4 | 12520056954 | Shop at ECS Tuning | |||||
| A18*3B - Seat module, driver's side rear | ||||||||||
| 11 | Socket housing, uncloded | 8 POL. | 1 | 61136905168 | $1.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² SN | 2 | 61130056947 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 3 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 3 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 1 | 61138727252 | Shop at ECS Tuning | |||||
| A190*1B - EME | ||||||||||
| 13 | Socket housing | 58-POLIG | 1 | 12528526161 | Shop at ECS Tuning | |||||
| A203*1B - Remote control receiver | ||||||||||
| 15 | Rep. kit for socket housing | 6 POL. | 1 | 61132359992 | Shop at ECS Tuning | |||||
| A21*4B - Roof function center | ||||||||||
| 17 | Socket housing | 4 POL. | 1 | 61139314856 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,35-0,5 MM² SN | 2 | 61130056946 | Shop at ECS Tuning | |||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² AG | 2 | 61130070576 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| A21*2B - Roof function center | ||||||||||
| 17 | Socket housing | 10 POL. | 1 | 61139314860 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 6 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 6 | 61138727251 | Shop at ECS Tuning | |||||
| A21*1B - Roof function center | ||||||||||
| 17 | Socket housing | 18 POL. | 1 | 61139314858 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 15 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 15 | 61138727251 | Shop at ECS Tuning | |||||
| A210*1B - SCR control unit | ||||||||||
| 18 | Socket housing | 94 POL. | 1 | 61139284432 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,75-1,5 MM² SN | 2 | 61130056939 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | 6 | 61131383793 | Shop at ECS Tuning | ||||||
| -- | Contact bushing MCP 2.8 ELA | 0,5-1,0 MM² AG | 3 | 61139232678 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCP 2.8 ELA | 1,5-2,5 MM² AG | 3 | 61139232679 | Shop at ECS Tuning | |||||
| -- | Sealing grommet | 15 | 61139318599 | Shop at ECS Tuning | ||||||
| -- | Contact bushing MQS with cable | 0,22-0,35MM²/SN | 3 | 12520056937 | Shop at ECS Tuning | |||||
| -- | Single conductor seal | 1,5-2,5 MM² | 3 | 12521732591 | $0.22 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | 0,13-1,0 MM² | 3 | 12521732592 | $0.38 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0,75 MM² /SN | 7 | 12527502041 | $0.50 | Shop at ECS Tuning | ||||
| A218*4B - Trunk lid lift | ||||||||||
| 20 | Cover cap | 12 POL. | 1 | 61139338965 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 4 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 3 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Socket terminal SLK 2.8 with wire | 0,5-0,75 MM² AG | 2 | 12522466585 | Shop at ECS Tuning | |||||
| A218*1B - Tailgate lift | ||||||||||
| 20 | Covering cap | 1 | 61139329883 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 4 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 1 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Plug socket MCP 6,3x0,8 | 2,5-4,0 MM² AG | 2 | 61139232683 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
