Plug connection from B11*1B-->B161*1B for BMW 7 Series G12 730Ld (2019)

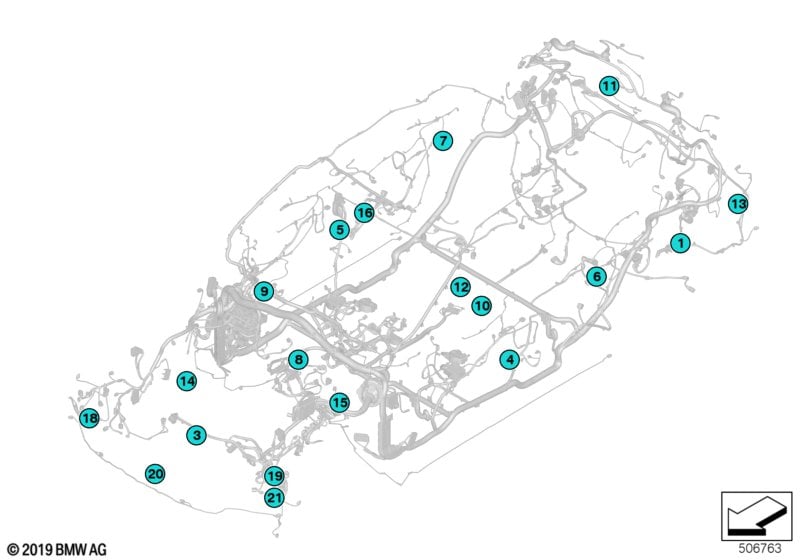

This Plug connection from B11*1B-->B161*1B technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| B11*1B - Ride height sensor, rear left | ||||||||||
| 01 | Universal socket housing uncoded | 6 POL. | 1 | 61138383300 | $3.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AG | 3 | 61130085034 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | MQS Ø=3,6 | 3 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 3 | 61138727251 | Shop at ECS Tuning | |||||
| B12*1B - Emergency loudspeaker | ||||||||||
| 08 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 2 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| B13*1B - AUC sensor | ||||||||||
| 09 | Rep. kit for socket housing | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| B149*1B - Lane change warning, rear right |
||||||||||
| 11 | Socket housing | 16 POL. | 1 | 12527622806 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Dummy grommet | MQS Ø=3,6 | 6 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 10 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCON 1.2 with cable | 0,25-0,35MM² AG | 10 | 12520056954 | Shop at ECS Tuning | |||||
| B150*1B - Lane change warning, rear left | ||||||||||
| 13 | Socket housing | 16 POL. | 1 | 12527622806 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Dummy grommet | MQS Ø=3,6 | 3 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 13 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCON 1.2 with cable | 0,25-0,35MM² AG | 13 | 12520056954 | Shop at ECS Tuning | |||||
| B156*1B - Rain-light-condensation sensor | ||||||||||
| 16 | Universal socket housing uncoded | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 2 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 1 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
