Single wiper parts for BMW XM G09 XM (2025)

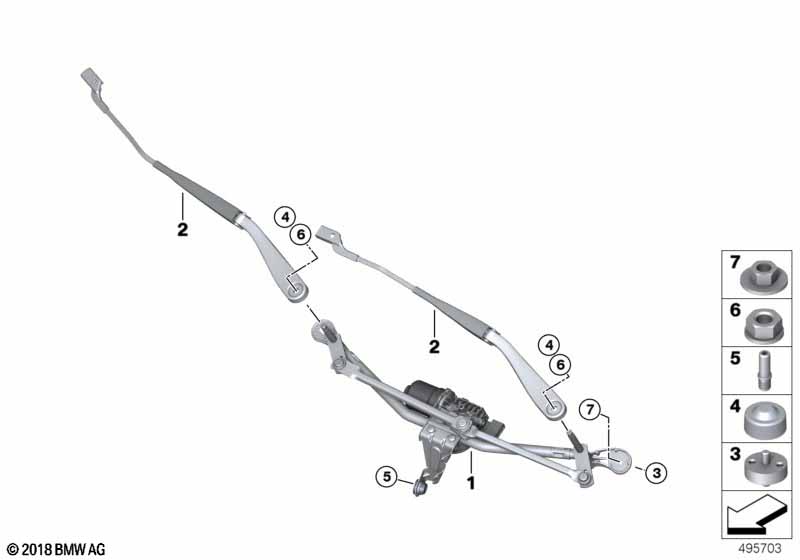

This Single wiper parts technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Linkage windshield wiper with motor | RL | 1 | 61615A45FD2 | Shop at ECS Tuning | |||||
| 02 | Wiper arm, front passenger side | RL | 1 | 61615A81969 | Shop at ECS Tuning | |||||
| 02 | Wiper arm driver's side | RL | 1 | 61619853095 | Shop at ECS Tuning | |||||
| 03 | Decoupling buffer | 2 | 61617293753 | Shop at ECS Tuning | ||||||
| 04 | Covering cap | 2 | 52108119867 | $0.21 | Shop at ECS Tuning | |||||
| 05 | Pin | 1 | 17137357293 | Shop at ECS Tuning | ||||||
| 06 | Hex nut | 2 | 07146971889 | $0.82 | Shop at ECS Tuning | |||||
| 07 | Hex nut | BM8-8-ZNS3 | 2 | 07129905095 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW XM G09 XM Single wiper parts?
- This technical diagram illustrates the Single wiper parts within the Vehicle electrical system group for the XM G09 XM produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Linkage windshield wiper with motor (Part #61615A45FD2).
- Which models use the hardware listed in this Single wiper parts?
- The hardware and components featured in the Single wiper parts are specific to the XM G09 XM produced during 2025. These technical specifications ensure that parts like the Linkage windshield wiper with motor (61615A45FD2) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single wiper parts assembly?
- Each item in the Single wiper parts corresponds to the numbered list below the illustration. For the XM G09 XM, you can identify the Linkage windshield wiper with motor by locating its position on the schematic, which then links to the official BMW part number 61615A45FD2 for the Vehicle electrical system section.
