Switch, power seat, driver for BMW 8 Series G16 Gran Coupé 840dX (2024)

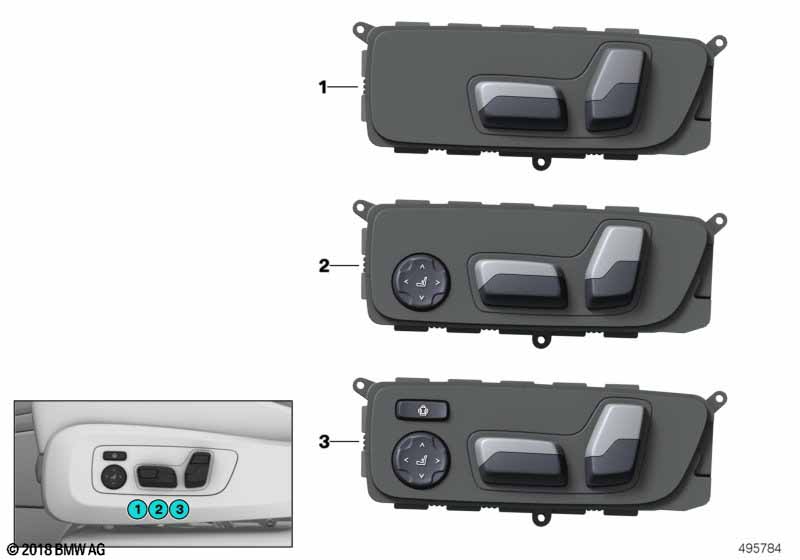

This Switch, power seat, driver technical drawing provides a detailed breakdown of the assembly for the 8 Series G16 Gran Coupé 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Climate-controlled seats, front and Lumbar support, driver and passenger and Multifunction seat driver and passenger and M Sports seats |
S453A=No S488A=No S4FMA=No S711A=No |
|||||||||
| 01 | Seat adjustment switch, right | 1 | 61316801476 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, front and Lumbar support, driver and passenger and Multifunction seat driver and passenger |
S453A=No S488A=Yes S4FMA=No |
|||||||||
| 02 | Seat adjustment switch, right | 1 | 61316801478 | Shop at ECS Tuning | ||||||
| For vehicles with Climate-controlled seats, front and Lumbar support, driver and passenger and Multifunction seat driver and passenger and M Sports seats |
S453A=Yes S488A=No S4FMA=Yes S711A=Yes |
|||||||||
| 03 | Seat adjustment switch, right | 5W LOR LBV | 1 | 61315A99E32 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Lumbar support, driver and passenger and Multifunction seat driver and passenger and M Sports seats |
S453A=Yes S488A=No S4FMA=Yes S711A=No |
|||||||||
| 03 | Seat adjustment switch, right | 5W LOR LBV | 1 | 61315A99E32 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Lumbar support, driver and passenger and Multifunction seat driver and passenger and M Sports seats |
S453A=Yes S488A=No S4FMA=No S711A=Yes |
|||||||||
| 03 | Seat adjustment switch, right | 5W LOR LBV | 1 | 61315A99E32 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Lumbar support, driver and passenger and Multifunction seat driver and passenger and M Sports seats |
S453A=Yes S488A=No S4FMA=No S711A=No |
|||||||||
| 03 | Seat adjustment switch, right | 5W LOR LBV | 1 | 61315A99E32 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Lumbar support, driver and passenger and Multifunction seat driver and passenger and M Sports seats |
S453A=No S488A=No S4FMA=Yes S711A=Yes |
|||||||||
| 03 | Seat adjustment switch, right | 5W LOR LBV | 1 | 61315A99E32 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Lumbar support, driver and passenger and Multifunction seat driver and passenger and M Sports seats |
S453A=No S488A=No S4FMA=Yes S711A=No |
|||||||||
| 03 | Seat adjustment switch, right | 5W LOR LBV | 1 | 61315A99E32 | Shop at ECS Tuning | |||||
| For vehicles with Climate-controlled seats, front and Lumbar support, driver and passenger and Multifunction seat driver and passenger and M Sports seats |
S453A=No S488A=No S4FMA=No S711A=Yes |
|||||||||
| 03 | Seat adjustment switch, right | 5W LOR LBV | 1 | 61315A99E32 | Shop at ECS Tuning | |||||
