Plug connection from E55*1B-->E73*1B for BMW 3 Series G20 Sedan 320dX (2022)

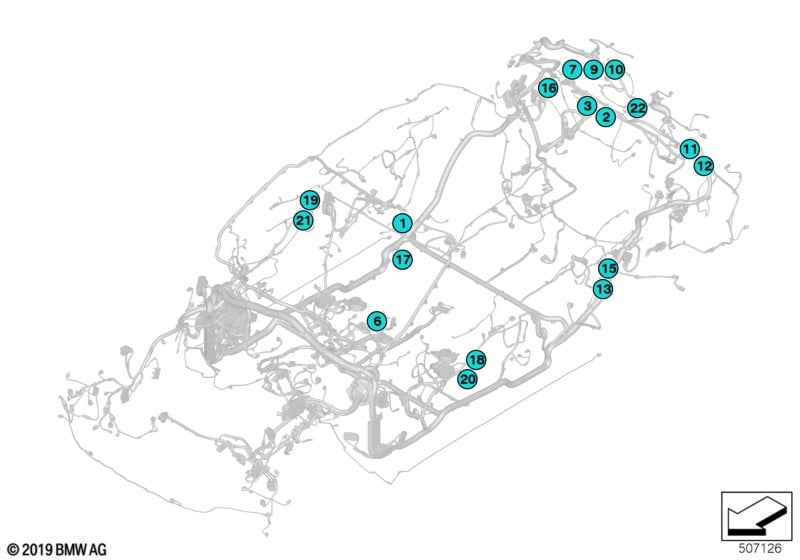

This Plug connection from E55*1B-->E73*1B technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| E56*1B - center armrest light, front | ||||||||||
| 06 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| E57*1B - tail light, right, outer | ||||||||||
| 07 | Socket housing | 6 POL. KOD A | 1 | 07/2022 | 61136992166 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 3 | 07/2022 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Dummy grommet | 1 | 07/2022 | 61131383793 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | MQS Ø=3,6 | 1 | 07/2022 | 61138366249 | $0.20 | Shop at ECS Tuning | |||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 4 | 07/2022 | 61138727252 | Shop at ECS Tuning | ||||
| -- | Cont.bush.MCON 2,8 sg.cond.seal w/cable | 0,75-1,0MM² AG | 1 | 07/2022 | 12520085056 | Shop at ECS Tuning | ||||
| 07 | Socket housing uncoded | 6 POL. | 1 | 61136992168 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 3 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | 1 | 61131383793 | Shop at ECS Tuning | ||||||
| -- | Dummy grommet | MQS Ø=3,6 | 1 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 4 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Cont.bush.MCON 2,8 sg.cond.seal w/cable | 0,75-1,0MM² AG | 1 | 12520085056 | Shop at ECS Tuning | |||||
| E59*1B - auxiliary brake light | ||||||||||
| 10 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| E60*1B - tail light, left, inner | ||||||||||
| 11 | Rep. kit for socket housing | 6 POL. | 1 | 61132359992 | Shop at ECS Tuning | |||||
| E62*1B - tail light, left, outer | ||||||||||
| 12 | Socket housing | 6 POL. KOD A | 1 | 07/2022 | 61136992166 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 3 | 07/2022 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Dummy grommet | 1 | 07/2022 | 61131383793 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | MQS Ø=3,6 | 1 | 07/2022 | 61138366249 | $0.20 | Shop at ECS Tuning | |||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 4 | 07/2022 | 61138727252 | Shop at ECS Tuning | ||||
| -- | Cont.bush.MCON 2,8 sg.cond.seal w/cable | 0,75-1,0MM² AG | 1 | 07/2022 | 12520085056 | Shop at ECS Tuning | ||||
| 12 | Socket housing uncoded | 6 POL. | 1 | 61136992168 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 3 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | 1 | 61131383793 | Shop at ECS Tuning | ||||||
| -- | Dummy grommet | MQS Ø=3,6 | 1 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 4 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Cont.bush.MCON 2,8 sg.cond.seal w/cable | 0,75-1,0MM² AG | 1 | 12520085056 | Shop at ECS Tuning | |||||
| E67*1B - interference suppression filter | ||||||||||
| 16 | Universal socket housing uncoded | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 2 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| E68*1B - lighting, front passenger seat, backrest rear panel |
||||||||||
| 17 | Socket housing | 4 POL. KOD. B | 1 | 61139288151 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 3 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 3 | 61138727251 | Shop at ECS Tuning | |||||
| E70*1B - switch vanity mirror, front right |
||||||||||
| 19 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| E71*1B - inside door handle light, driver's door |
||||||||||
| 20 | Socket housing | 4 POL. KOD. D | 1 | 61139362831 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 4 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| E72*1B - inside door handle light, front passenger door |
||||||||||
| 21 | Socket housing | 4 POL. KOD. D | 1 | 61139362831 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 4 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| E73*1B - trunk light, tailgate | ||||||||||
| 22 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
