Plug connection from X19*1B->X289*2B for BMW 7 Series G11 LCI 740dX (2020)

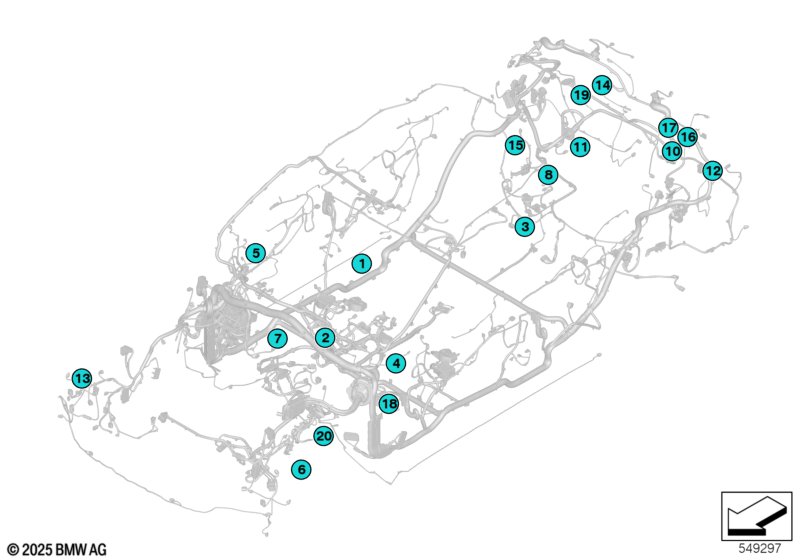

This Plug connection from X19*1B->X289*2B technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 740dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| X200*1B - Plug connector, center armrest lighting rear |
||||||||||
| 03 | Socket housing, uncloded | 12 POL. | 1 | 61139130246 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 11 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 11 | 61138727251 | Shop at ECS Tuning | |||||
| X21*1B - brake pad wear sensor, front left |
||||||||||
| 06 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| X217*1B - windshield washer jet | ||||||||||
| 07 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| X258*1B - Plug connector, rear module | ||||||||||
| 14 | Universal socket housing uncoded | 8 POL. | 1 | 61138364624 | $4.07 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AG | 8 | 61130085034 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 8 | 61138727251 | Shop at ECS Tuning | |||||
| X258*1S - Plug connector, rear module | ||||||||||
| 14 | Pin terminal | 8 POL. | 1 | 61136901655 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Pin contact MQS ELA with cable | 0,2-0,35 MM² AG | 8 | 61130086267 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 8 | 61138727251 | Shop at ECS Tuning | |||||
| X26*1B - brake pad wear sensor, rear right |
||||||||||
| 15 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| X268*1B - Plug connector preparation, trailer hitch |
||||||||||
| 16 | Universal socket housing | 6 POL. | 1 | 12527505225 | $2.53 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 1,5-2,5MM² AG | 2 | 61132471790 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Single conductor seal | 1,0-2,5MM² | 2 | 12521748974 | $0.20 | Shop at ECS Tuning | ||||
| -- | Socket terminal SLK 2.8 ELA with wire | 1,0-1,5 MM² AG | 2 | 12522466447 | Shop at ECS Tuning | |||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,5-0,75MM² AG | 2 | 12522466469 | Shop at ECS Tuning | |||||
| X269*1B - Plug connector preparation, trailer hitch |
||||||||||
| 17 | Universal socket housing uncoded | 12 POL. | 1 | 61138373632 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 7 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AG | 4 | 61130085034 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | MQS Ø=3,6 | 1 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 11 | 61138727251 | Shop at ECS Tuning | |||||
| X28*1S - Plug connector, driver's door | ||||||||||
| 18 | Pin terminal | 39-POLIG | 1 | 61139221022 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Pin cont.ELO-power w/cable | 1,0-2,5 MM² AG | 2 | 61130056944 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 3 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Pin contact MQS with cable | 0,2-0,35 QMM AG | 24 | 61130070578 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 24 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 3 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Fuse | 1 | 61139221027 | Shop at ECS Tuning | ||||||
