Original BMW battery add-on parts for BMW 3 Series G20 Sedan 330e (2022)

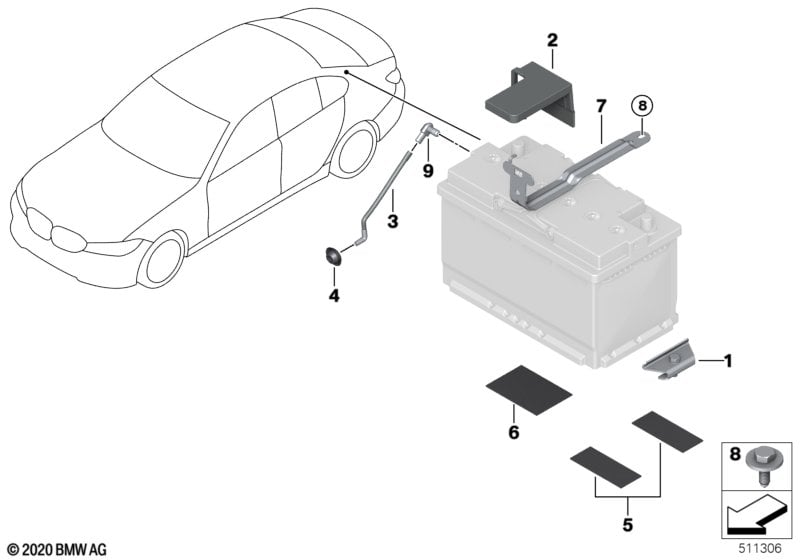

This Original BMW battery add-on parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Additional energy supply |
S146A=Yes |
|||||||||
| 03 | Vent hose for battery | 1 | 61219311080 | Shop at ECS Tuning | ||||||
| 04 | Rubber grommet | 12MM | 1 | 61218801172 | Shop at ECS Tuning | |||||
| 06 | Set felt strip self-adhesive | 1 | 51452353024 | Shop at ECS Tuning | ||||||
| 07 | Battery, rollover bar | 1 | 61216832839 | Shop at ECS Tuning | ||||||
| 08 | Self-locking hex bolt | M6 | 2 | 07146961201 | $1.17 | Shop at ECS Tuning | ||||
| 09 | Connection elbow | 1 | 61211377835 | $0.52 | Shop at ECS Tuning | |||||
