Plug connection from A22*1B-> A26*5B for BMW 3 Series G20 Sedan 330e (2019)

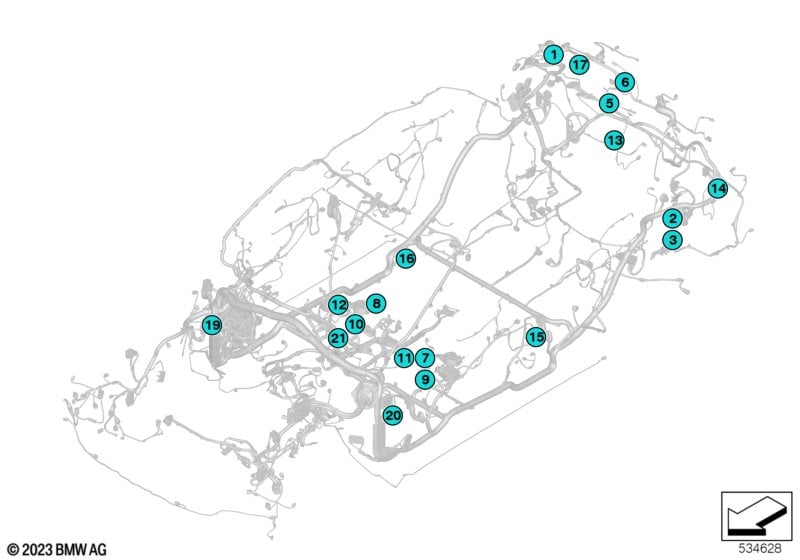

This Plug connection from A22*1B-> A26*5B technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.

Plug connection from A22*1B-> A26*5B
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Note:
The parts declared as being "only in
combination
with" parts are not considered to be
absolutely necessary for an order. They
serve
informational purposes and can be
ordered if
required.
All plug/socket housings listed below
serve as
an installation overview for the
component code. Refer to the "AIR"
system for the exact installation
location for the respective vehicle.
A233*1B - Active Sound Design
02 Universal cover cap, uncoded 42 POL. 1 61138364810 Shop at ECS Tuning
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 0,35-0,5 MM² SN 4 61130056946 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,5-0,75 MM² AG 1 61130056960 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 15 61130056962 Shop at ECS Tuning
-- Buchsenkontakt ELO-Power mit Kabel 1,5-2,5 MM² AG 2 61130070576 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 1,5-2,5MM² 2 61138727250 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 19 61138727251 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,5-1,5MM² 1 61138727252 Shop at ECS Tuning
A239*1B - Smart Opener, rear
05 Rep. kit for socket housing 3 POL. 1 61132359997 Shop at ECS Tuning
A24*1B - Reversing camera
06 Socket housing 8 POL. KOD. C 1 61139281934 Shop at ECS Tuning
only in conjunction with
-- Contact bushing NanoMQS with cable 0,22-0,35MM² AG 7 61130056943 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 7 61138727251 Shop at ECS Tuning
-- Sealing grommet 1 61139318589 Shop at ECS Tuning
A243*1B - Seat-heating module, driver
09 Socket housing, uncloded 8 POL. 1 61136905168 $1.65 Shop at ECS Tuning
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 1,5-2,5 MM² SN 2 61130056947 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 2 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 1,5-2,5MM² 2 61138727250 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 2 61138727251 Shop at ECS Tuning
A243*2B - Seat-heating module, driver
09 Socket housing, uncloded 4 POL. 1 61136901832 $1.58 Shop at ECS Tuning
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 0,5-1,0 MM² SN 2 61130056370 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 1 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 1 61138727251 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,5-1,5MM² 2 61138727252 Shop at ECS Tuning
A244*1B - Seat heating module front
passenger
10 Socket housing, uncloded 8 POL. 1 61136905168 $1.65 Shop at ECS Tuning
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 1,5-2,5 MM² SN 2 61130056947 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 2 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 1,5-2,5MM² 2 61138727250 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 2 61138727251 Shop at ECS Tuning
A244*2B - Seat heating module front
passenger
10 Socket housing, uncloded 4 POL. 1 61136901832 $1.58 Shop at ECS Tuning
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 0,5-1,0 MM² SN 2 61130056370 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 1 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 1 61138727251 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,5-1,5MM² 2 61138727252 Shop at ECS Tuning
A245*6B - Seat module, front left
11 Socket housing 6 POL. 1 61139142904 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 6 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 6 61138727251 Shop at ECS Tuning
A245*1B - Seat module, front left
11 Covering cap 26 POL. 1 61139143007 Shop at ECS Tuning
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 0,5-1,0 MM² SN 2 61130056370 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 4 61130056962 Shop at ECS Tuning
-- Buchsenkontakt ELO-Power mit Kabel 1,5-2,5 MM² AG 2 61130070576 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 1,5-2,5MM² 2 61138727250 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 4 61138727251 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,5-1,5MM² 2 61138727252 Shop at ECS Tuning
A245*8B - Seat module, front left
11 Socket housing 8 POL. KOD. A 1 61139142900 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 6 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 6 61138727251 Shop at ECS Tuning
A245*2B - Seat module, front left
11 Covering cap 22 POL. 1 61139142999 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 6 61130056962 Shop at ECS Tuning
-- Buchsenkontakt ELO-Power mit Kabel 1,5-2,5 MM² AG 6 61130070576 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 1,5-2,5MM² 6 61138727250 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 6 61138727251 Shop at ECS Tuning
A245*3B - Seat module, front left
11 Socket housing, uncloded 8 POL. 1 61136905168 $1.65 Shop at ECS Tuning
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 1,5-2,5 MM² SN 2 61130056947 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 3 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 1,5-2,5MM² 2 61138727250 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 3 61138727251 Shop at ECS Tuning
A245*5B - Seat module, front left
11 Socket housing, uncloded 4 POL. 1 61136901832 $1.58 Shop at ECS Tuning
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 0,5-1,0 MM² SN 2 61130056370 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 1 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 1 61138727251 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,5-1,5MM² 2 61138727252 Shop at ECS Tuning
A246*8B - Front passenger seat module
12 Socket housing 8 POL. KOD. A 1 61139142900 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 6 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 6 61138727251 Shop at ECS Tuning
A246*3B - Front passenger seat module
12 Socket housing, uncloded 8 POL. 1 61136905168 $1.65 Shop at ECS Tuning
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 1,5-2,5 MM² SN 2 61130056947 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 3 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 1,5-2,5MM² 2 61138727250 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 3 61138727251 Shop at ECS Tuning
A246*2B - Front passenger seat module
12 Covering cap 22 POL. 1 61139142999 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 6 61130056962 Shop at ECS Tuning
-- Buchsenkontakt ELO-Power mit Kabel 1,5-2,5 MM² AG 6 61130070576 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 1,5-2,5MM² 6 61138727250 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 6 61138727251 Shop at ECS Tuning
A246*5B - Front passenger seat module
12 Socket housing, uncloded 4 POL. 1 61136901832 $1.58 Shop at ECS Tuning
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 0,5-1,0 MM² SN 2 61130056370 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 1 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 1 61138727251 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,5-1,5MM² 2 61138727252 Shop at ECS Tuning
A246*1B - Front passenger seat module
12 Covering cap 26 POL. 1 61139143007 Shop at ECS Tuning
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 0,5-1,0 MM² SN 2 61130056370 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 4 61130056962 Shop at ECS Tuning
-- Buchsenkontakt ELO-Power mit Kabel 1,5-2,5 MM² AG 2 61130070576 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 1,5-2,5MM² 2 61138727250 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 4 61138727251 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,5-1,5MM² 2 61138727252 Shop at ECS Tuning
A246*6B - Front passenger seat module
12 Socket housing 6 POL. 1 61139142904 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 6 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 6 61138727251 Shop at ECS Tuning
A253*1B - Seat belt retractor, left
15 Socket housing 6 pins 1 61139242495 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS with cable 0,5-0,75 MM² AG 1 61130056960 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 2 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 2 61138727251 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,5-1,5MM² 1 61138727252 Shop at ECS Tuning
-- Socket contact MCP 2.8 4,0 MM² AG 2 61139232676 Shop at ECS Tuning
A254*1B - Seat belt retractor, right
16 Socket housing 6 pins 1 61139242495 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS with cable 0,5-0,75 MM² AG 1 61130056960 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 1 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 1 61138727251 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,5-1,5MM² 1 61138727252 Shop at ECS Tuning
-- Socket contact MCP 2.8 4,0 MM² AG 1 61139232676 Shop at ECS Tuning
A258*7B - Body Domain Controller
19 Covering cap 54-POL 1 61139387123 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS with cable 0,5-0,75 MM² AG 2 61130056960 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 26 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 26 61138727251 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,5-1,5MM² 2 61138727252 Shop at ECS Tuning
A258*10B - Body Domain Controller
19 Rep. kit for socket housing 12 POL. 1 61132471237 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 7 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 7 61138727251 Shop at ECS Tuning
A258*8B - Body Domain Controller
19 Covering cap 54-POL 1 61139387122 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 1 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 1 61138727251 Shop at ECS Tuning
A258*9B - Body Domain Controller
19 Covering cap 54 POL. KOD C 1 61139387124 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 28 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 28 61138727251 Shop at ECS Tuning
A258*3B - Body Domain Controller
19 Cover cap 54 POL. KOD A 1 61139387126 Shop at ECS Tuning
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 0,5-1,0 MM² SN 2 61130056370 Shop at ECS Tuning
-- Buchsenkontakt ELO-Power mit Kabel 1,5-2,5 MM² SN 1 61130056947 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,5-0,75 MM² AG 10 61130056960 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 21 61130056962 Shop at ECS Tuning
-- Buchsenkontakt ELO-Power mit Kabel 1,5-2,5 MM² AG 1 61130070576 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 1,5-2,5MM² 1 61138727250 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 21 61138727251 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,5-1,5MM² 12 61138727252 Shop at ECS Tuning
A258*2B - Body Domain Controller
19 Covering cap 42 POL. KOD A 1 61139387120 Shop at ECS Tuning
only in conjunction with
-- Buchsenkontakt ELO-Power mit Kabel 0,5-1,0 MM² SN 1 61130056370 Shop at ECS Tuning
-- Buchsenkontakt ELO-Power mit Kabel 0,35-0,5 MM² SN 1 61130056946 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,5-0,75 MM² AG 4 61130056960 Shop at ECS Tuning
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 22 61130056962 Shop at ECS Tuning
-- Buchsenkontakt ELO-Power mit Kabel 1,5-2,5 MM² AG 5 61130070576 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 1,5-2,5MM² 5 61138727250 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 23 61138727251 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,5-1,5MM² 5 61138727252 Shop at ECS Tuning
A259*1B - Surround view camera
20 Rep. kit for socket housing 18 POL. 1 61132471241 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS with cable 0,2-0,35 MM² AG 11 61130056962 Shop at ECS Tuning
-- Crimp connector with shrink-fit hose 0,17-0,5MM² 11 61138727251 Shop at ECS Tuning

See Also

CHARGE SOCKET WITH CHARGE CABLE CHARGE SOCKET WITH CHARGE CABLE
STANDARD CABLE / MODE 2 CHARGE CABLE STANDARD CABLE / MODE 2 CHARGE CABLE
BAG, STANDARD CHARGING CABLE BAG, STANDARD CHARGING CABLE
FLEXIBLE FAST CHARGER 2.0 FLEXIBLE FAST CHARGER 2.0
REP.CABLE F.MAIN WIRING HARNESS - FRONT REP.CABLE F.MAIN WIRING HARNESS - FRONT
REP.CABLE MAIN WIRING HARNESS HSD REP.CABLE MAIN WIRING HARNESS HSD
WIRING HARNESS REPAIR CABLE ANTENNA/COAX WIRING HARNESS REPAIR CABLE ANTENNA/COAX
SUPPLY CABLE MAIN WIRING HARNESS SUPPLY CABLE MAIN WIRING HARNESS
REP.CABLE F.MAIN WIRING HARNESS - REAR REP.CABLE F.MAIN WIRING HARNESS - REAR
REPAIR CABLE, ETHERNET REPAIR CABLE, ETHERNET
CABLE-YARDED MATERIAL CABLE-YARDED MATERIAL
VARIOUS ADDITIONAL CABLE HARNESSES VARIOUS ADDITIONAL CABLE HARNESSES
VARIOUS WIRING HARNESSES, HYBRID VARIOUS WIRING HARNESSES, HYBRID
SCOPE OF REPAIR WORK FOR AIRBAG SCOPE OF REPAIR WORK FOR AIRBAG
DOOR WIRING HARNESS DOOR WIRING HARNESS
WIRING HARNESS, SEAT, MANUAL WIRING HARNESS, SEAT, MANUAL
WIRING HARNESS SEAT ELECTR.WITH MEMORY WIRING HARNESS SEAT ELECTR.WITH MEMORY
BATTERY CABLE/EARTH CABLE BATTERY CABLE/EARTH CABLE
48 V ELECTRICAL SYSTEM 48 V ELECTRICAL SYSTEM
VARIOUS COMB-TYPE CONNECTORS VARIOUS COMB-TYPE CONNECTORS

Frequently Asked Questions

What assembly is shown in the BMW 3 Series G20 Sedan 330e Plug connection from A22*1B-> A26*5B?
This technical diagram illustrates the Plug connection from A22*1B-> A26*5B within the Vehicle electrical system group for the 3 Series G20 Sedan 330e produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Universal cover cap, uncoded (Part #61138364810).
Which models use the hardware listed in this Plug connection from A22*1B-> A26*5B?
The hardware and components featured in the Plug connection from A22*1B-> A26*5B are specific to the 3 Series G20 Sedan 330e produced during 2019. These technical specifications ensure that parts like the Universal cover cap, uncoded (61138364810) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Plug connection from A22*1B-> A26*5B assembly?
Each item in the Plug connection from A22*1B-> A26*5B corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 330e, you can identify the Universal cover cap, uncoded by locating its position on the schematic, which then links to the official BMW part number 61138364810 for the Vehicle electrical system section.
