Plug connection from A27*1B ->A338*2B for BMW 7 Series G11 LCI 740dX (2020)

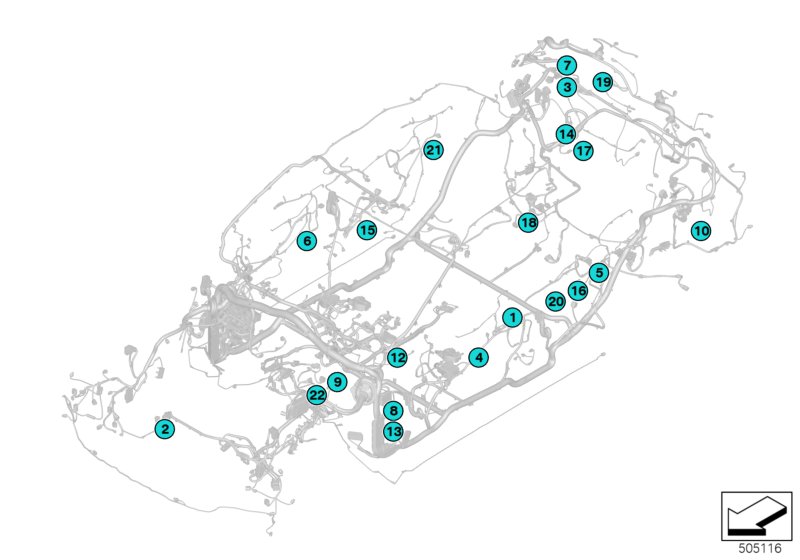

This Plug connection from A27*1B ->A338*2B technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 740dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plug/socket housings listed below serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| A271*1B - Front camera | ||||||||||
| 02 | Socket housing | 8 POL. KOD. C | 1 | 61139281934 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 4 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Sealing grommet | 4 | 61139318589 | Shop at ECS Tuning | ||||||
| A272*1B - Optional equipment system | ||||||||||
| 03 | Rep. kit for socket housing | 26 POL. | 1 | 61132471242 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 20 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 20 | 61138727251 | Shop at ECS Tuning | |||||
| A279*1B - Power window drive, driver's door |
||||||||||
| 04 | Socket housing, uncloded | 10 POL. | 1 | 61136931912 | $4.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 2 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² AG | 2 | 61130070576 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| A280*1B - Power window drive, front passenger door |
||||||||||
| 06 | Socket housing, uncloded | 10 POL. | 1 | 61136931912 | $4.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,35-0,5 MM² SN | 1 | 61130056946 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 3 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² AG | 2 | 61130070576 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| A281*1B - Pressurized fuel tank control module |
||||||||||
| 07 | Socket housing | 16 POL./Z-CODE | 1 | 61136901662 | $2.55 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,5-1,0 MM² SN | 2 | 61130056370 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 6 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 5 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 5 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 8 | 61138727252 | Shop at ECS Tuning | |||||
| A281*2B - Pressurized fuel tank control module |
||||||||||
| 07 | Socket housing | 4 POL. MPQ | 1 | 61136931890 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,5-1,0 MM² SN | 2 | 61130056370 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| A286*1B - Electr.steering column adjustment |
||||||||||
| 08 | Covering cap | 1 | 61136905167 | $2.59 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,5-1,0 MM² SN | 5 | 61130056370 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 5 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² AG | 1 | 61130070576 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 1 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 5 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 5 | 61138727252 | Shop at ECS Tuning | |||||
| A287*1B - Storage, charging electronics | ||||||||||
| 09 | Socket housing | 48 POL. SHW/BLA | 1 | 12528605510 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Terminal socket CP 0.6 | 0,22-0,35MM²/SN | 1 | 12527543202 | $0.50 | Shop at ECS Tuning | ||||
| -- | Terminal socket CP 0.6 | 0,50-0,75MM²/SN | 1 | 12527543203 | $0.50 | Shop at ECS Tuning | ||||
| -- | Bushing contact | 0,5-1,0 MM² | 1 | 12527543204 | $0.50 | Shop at ECS Tuning | ||||
| -- | Covering cap | 1 | 12527583558 | Shop at ECS Tuning | ||||||
| A31*1B - Drive for Automatic Soft Close, front passenger door |
||||||||||
| 15 | Socket housing | 6 POL. KOD. B | 1 | 61139275058 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Dummy grommet | MQS Ø=3,6 | 2 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Cont.bush.MCON 1,2 sg.cond.seal w/cable | 0,5-0,75MM² AG | 2 | 12520056374 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCON 1.2 with cable | 0,25-0,35MM² AG | 4 | 12520056954 | Shop at ECS Tuning | |||||
| A32*1B - Drive for Automatic Soft Close, rear driver's side |
||||||||||
| 16 | Socket housing | 6 POL. KOD. B | 1 | 61139275058 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Cont.bush.MCON 1,2 sg.cond.seal w/cable | 0,5-0,75MM² AG | 2 | 12520056374 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCON 1.2 with cable | 0,25-0,35MM² AG | 4 | 12520056954 | Shop at ECS Tuning | |||||
| A331*22B - Telematic Communication Box | ||||||||||
| 17 | Universal socket housing uncoded | 10-POL. | 1 | 61139132577 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 7 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 7 | 61138727251 | Shop at ECS Tuning | |||||
| A333*2B - Vertical dynamic platform | ||||||||||
| 19 | Covering cap | 51 POL. | 1 | 61136931873 | $8.75 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 11 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 3 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 3 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 11 | 61138727252 | Shop at ECS Tuning | |||||
| A333*1B - Vertical dynamic platform | ||||||||||
| 19 | Covering cap | 51 POL. | 1 | 61136931871 | $8.75 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,35-0,5 MM² SN | 8 | 61130056946 | Shop at ECS Tuning | |||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² SN | 2 | 61130056947 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 17 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 18 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 24 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 17 | 61138727252 | Shop at ECS Tuning | |||||
| A334*1B - Power window drive, rear driver's side |
||||||||||
| 20 | Socket housing, uncloded | 10 POL. | 1 | 61136931912 | $4.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,35-0,5 MM² SN | 1 | 61130056946 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 3 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² AG | 2 | 61130070576 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| A338*2B - DSC | ||||||||||
| 22 | Socket housing | 46-POL. | 1 | 61139249062 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 7 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 14 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCP 2.8 ELA | 1,5-2,5 MM² AG | 4 | 61139232679 | Shop at ECS Tuning | |||||
| -- | Cont.bush.MCON 1,2 sg.cond.seal w/cable | 0,5-0,75MM² AG | 14 | 12520056374 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCON 1.2 with cable | 0,25-0,35MM² AG | 7 | 12520056954 | Shop at ECS Tuning | |||||
| -- | Single conductor seal | 1,5-2,5 MM² | 4 | 12521732591 | $0.22 | Shop at ECS Tuning | ||||
