Plug connection from A343*1B->A390*3B for BMW 7 Series G11 LCI 730dX (2020)

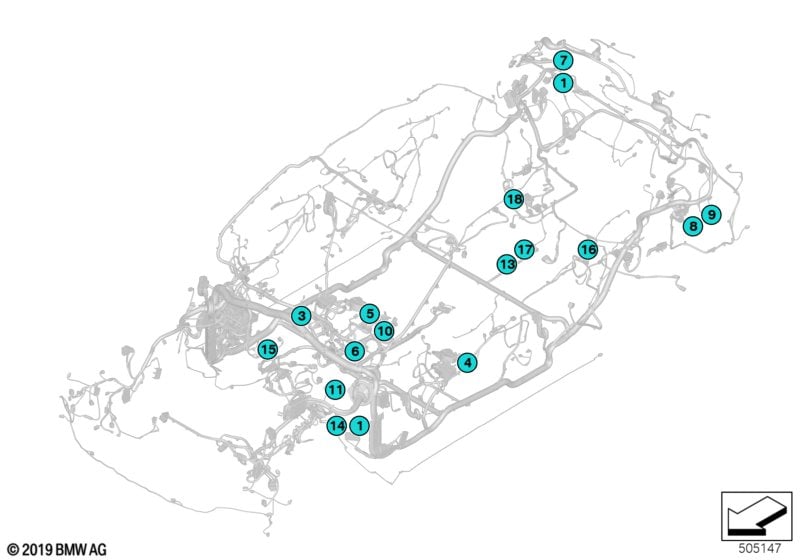

This Plug connection from A343*1B->A390*3B technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plug/socket housings listed below serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| A343*3B - Ultrasound control unit | ||||||||||
| 01 | Rep. kit for socket housing | 18 POL. | 1 | 61132471241 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 16 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 16 | 61138727251 | Shop at ECS Tuning | |||||
| A345*1B - Ionizer | ||||||||||
| 03 | Universal socket housing uncoded | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 3 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 3 | 61138727251 | Shop at ECS Tuning | |||||
| A352*1B - Driver Camera System | ||||||||||
| 06 | Covering cap | 12 POL. | 1 | 61138387206 | $2.07 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 7 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 7 | 61138727251 | Shop at ECS Tuning | |||||
| A361*1B - LIN power distribution box | ||||||||||
| 07 | Rep. kit for socket housing | 26 POL. | 1 | 61132471242 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 4 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 6 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 6 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 4 | 61138727252 | Shop at ECS Tuning | |||||
| A371*1B - Light effect manager | ||||||||||
| 09 | Rep. kit for socket housing | 26 POL. | 1 | 61132471242 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 5 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 5 | 61138727251 | Shop at ECS Tuning | |||||
| A387*1B - Control electronics, armrest heating, driver |
||||||||||
| 14 | Socket housing, uncloded | 8 POL. | 1 | 61136905168 | $1.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² SN | 2 | 61130056947 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 1 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| A387*2B - Control electronics, armrest heating, driver |
||||||||||
| 14 | Socket housing, uncloded | 4 POL. | 1 | 61136901832 | $1.58 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,5-1,0 MM² SN | 2 | 61130056370 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 3 | 61138727252 | Shop at ECS Tuning | |||||
| A387*3B - Control electronics, armrest heating, driver |
||||||||||
| 14 | Socket housing | 5 POL. | 1 | 61136901842 | $4.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,5-1,0 MM² SN | 2 | 61130056370 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 1 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| A388*2B - Control electronics, armrest heating, front passenger |
||||||||||
| 15 | Socket housing, uncloded | 4 POL. | 1 | 61136901832 | $1.58 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,5-1,0 MM² SN | 2 | 61130056370 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 3 | 61138727252 | Shop at ECS Tuning | |||||
| A388*3B - Control electronics, armrest heating, front passenger |
||||||||||
| 15 | Socket housing | 5 POL. | 1 | 61136901842 | $4.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,5-1,0 MM² SN | 2 | 61130056370 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 1 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| A388*1B - Control electronics, armrest heating, front passenger |
||||||||||
| 15 | Socket housing, uncloded | 8 POL. | 1 | 61136905168 | $1.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² SN | 2 | 61130056947 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 1 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 3 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 1 | 61138727252 | Shop at ECS Tuning | |||||
| A389*2B - Control electronics, armrest heating, rear driver's side |
||||||||||
| 16 | Socket housing, uncloded | 4 POL. | 1 | 61136901832 | $1.58 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,5-1,0 MM² SN | 2 | 61130056370 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 1 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| A389*3B - Control electronics, armrest heating, rear driver's side |
||||||||||
| 16 | Socket housing | 5 POL. | 1 | 61136901842 | $4.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,5-1,0 MM² SN | 2 | 61130056370 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 1 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| A389*1B - Control electronics, armrest heating, rear driver's side |
||||||||||
| 16 | Socket housing, uncloded | 8 POL. | 1 | 61136905168 | $1.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² SN | 2 | 61130056947 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 1 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 1 | 61138727252 | Shop at ECS Tuning | |||||
| A39*2B - Automatic rear air- conditioning system |
||||||||||
| 17 | Rep. kit for socket housing | 18 POL. | 1 | 61132471241 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 10 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 10 | 61138727251 | Shop at ECS Tuning | |||||
| A390*2B - Control electronics armrest heating, passenger's side, rear |
||||||||||
| 18 | Socket housing, uncloded | 4 POL. | 1 | 61136901832 | $1.58 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,5-1,0 MM² SN | 2 | 61130056370 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 1 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| A390*3B - Control electronics, armrest heating, rear passenger's side |
||||||||||
| 18 | Socket housing | 5 POL. | 1 | 61136901842 | $4.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,5-1,0 MM² SN | 2 | 61130056370 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 1 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| A390*1B - Control electronics, armrest heating, rear passenger's side |
||||||||||
| 18 | Socket housing, uncloded | 8 POL. | 1 | 61136905168 | $1.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² SN | 2 | 61130056947 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 2 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 1 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
