Plug connection from A5*1B->A79*1B for BMW 3 Series G20 Sedan 330e (2019)

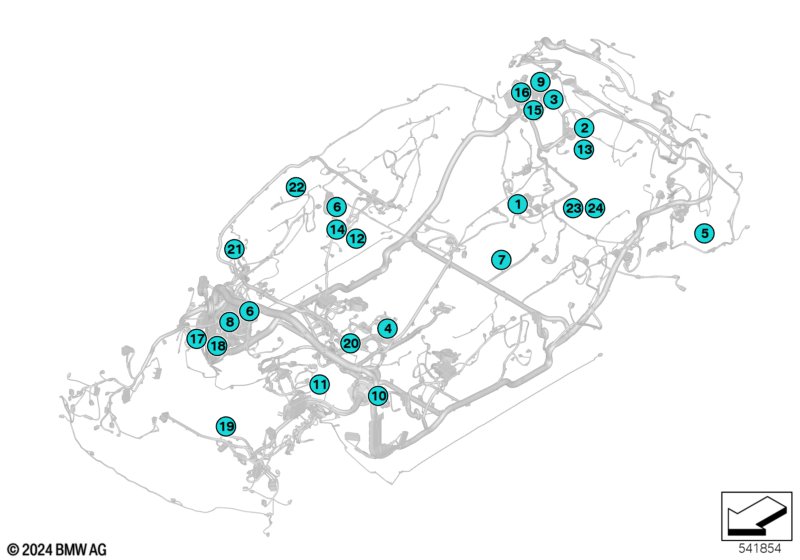

This Plug connection from A5*1B->A79*1B technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plug/socket housings listed below serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| A5*1B - Seat-heating module, rear passenger's side |
||||||||||
| 01 | Socket housing, uncloded | 8 POL. | 1 | 61136905168 | $1.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² SN | 2 | 61130056947 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 2 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 1 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| A519*2B - USB charging socket | ||||||||||
| 04 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| A56*1B - Camera-based Driver Assist | ||||||||||
| 08 | Bushing housing 10-pin | 1 | 61139353105 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 9 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 9 | 61138727251 | Shop at ECS Tuning | |||||
| A56*3B - camera-based driver assistance | ||||||||||
| 08 | Socket housing 2 pins | 1 | 61139238490 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 2 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| A60*4B - Electrochromic interior mirror | ||||||||||
| 14 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,13-0,17MM² SN | 1 | 61130070645 | Shop at ECS Tuning | |||||
| A60*1B - Electrochromic interior mirror | ||||||||||
| 14 | Rep. kit for socket housing | 6 POL. | 1 | 61132359992 | Shop at ECS Tuning | |||||
| A63*4B - Wave trap for rear window heating |
||||||||||
| 15 | Plug housing | 1 POL. | 1 | 61131378460 | $1.62 | Shop at ECS Tuning | ||||
| A67*1B - Electromechanical power steering |
||||||||||
| 19 | Universal socket housing uncoded | 6 POL. | 1 | 61138383300 | $3.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AG | 3 | 61130085034 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | MQS Ø=3,6 | 3 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 3 | 61138727251 | Shop at ECS Tuning | |||||
| A71*1B - Instrument cluster | ||||||||||
| 20 | Rep. kit for socket housing | 12 POL. | 1 | 61132471240 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 10 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 10 | 61138727251 | Shop at ECS Tuning | |||||
