Plug connection from B162*1B->B219*1B for BMW XM G09 XM (2025)

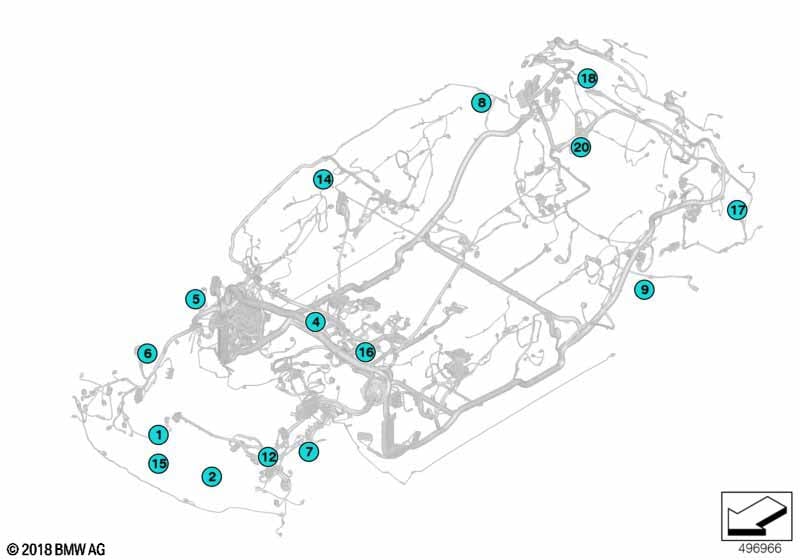

This Plug connection from B162*1B->B219*1B technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| B163*1B - Pedestrian protection sensor, center |
||||||||||
| 02 | Socket housing, uncloded | 2 POL. | 1 | 12527615488 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCON 1.2 with cable | 0,25-0,35MM² AG | 2 | 12520056954 | Shop at ECS Tuning | |||||
| B17*1B - Washer fluid level switch | ||||||||||
| 05 | Universal socket housing uncoded | 2 POL. | 1 | 61138373332 | $2.70 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cont.bush.ELO-power sg.cond.seal w/cable | 0,2- 0,5 MM² SN | 2 | 61130070581 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| 06 | Universal socket housing uncoded | 2 POL. | 1 | 61138795954 | Shop at ECS Tuning | |||||
| B172*1B - Vertical acceleration sensor, right front |
||||||||||
| 06 | Universal socket housing uncoded | 2 POL. | 1 | 61138795954 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 2 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| B173*1B - Vertical acceleration sensor, left front |
||||||||||
| 07 | Universal socket housing uncoded | 2 POL. | 1 | 61138795954 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 2 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| B174*1B - Vertical acceleration sensor, rear left |
||||||||||
| 08 | Universal socket housing uncoded | 2 POL. | 1 | 61138795954 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 2 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| B175*1B - Vertical acceleration sensor, right rear |
||||||||||
| 09 | Universal socket housing uncoded | 2 POL. | 1 | 61138795954 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 2 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| B18*1B - Coolant level sensor | ||||||||||
| 12 | Socket housing | 3 POL. | 1 | 61139230659 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Flat spring contact JPT ELA with cable | 0,2-0,35 MM² AG | 2 | 61130085048 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | 1 | 61131383793 | Shop at ECS Tuning | ||||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| B2*1B - Microphone 2 | ||||||||||
| 14 | Universal socket housing uncoded | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 3 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 3 | 61138727251 | Shop at ECS Tuning | |||||
| B202*1B - Active cruise control | ||||||||||
| 15 | Universal socket housing uncoded | 8 POL. | 1 | 61138364624 | $4.07 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AG | 5 | 61130085034 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | MQS Ø=3,6 | 3 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 5 | 61138727251 | Shop at ECS Tuning | |||||
| B207*1B - Ring antenna | ||||||||||
| 16 | Universal socket housing uncoded | 2 POL. | 1 | 61136925634 | $1.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 2 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
