Plug connection from B35*1B->B513*1B for BMW 3 Series G20 Sedan 330e (2020)

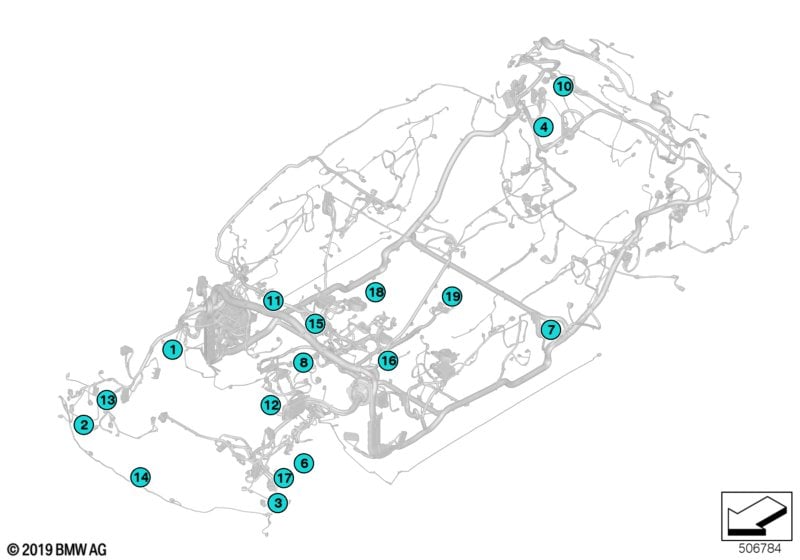

This Plug connection from B35*1B->B513*1B technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| B350*1B - Pressure sensor, right front | ||||||||||
| 02 | Socket housing, uncloded | 2 POL. | 1 | 12527615488 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCON 1.2 with cable | 0,25-0,35MM² AG | 2 | 12520056954 | Shop at ECS Tuning | |||||
| B36*1B - Lane change warning, front left | ||||||||||
| 03 | Socket housing | 16 POL. | 1 | 12527622806 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Dummy grommet | MQS Ø=3,6 | 2 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 14 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCON 1.2 with cable | 0,25-0,35MM² AG | 14 | 12520056954 | Shop at ECS Tuning | |||||
| B39*1B - Ride height sensor, front left | ||||||||||
| 06 | Universal socket housing uncoded | 6 POL. | 1 | 61138383300 | $3.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AG | 3 | 61130085034 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | MQS Ø=3,6 | 3 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 3 | 61138727251 | Shop at ECS Tuning | |||||
| B40*1 - Airbag sensor B-pillar, left | ||||||||||
| 07 | Universal socket housing uncoded | 2 POL. | 1 | 12527543313 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCON 1.2 with cable | 0,25-0,35MM² AG | 2 | 12520056954 | Shop at ECS Tuning | |||||
| B45*1B - Airbag front sensor, right | ||||||||||
| 13 | Universal socket housing uncoded | 2 POL. | 1 | 12527543313 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCON 1.2 with cable | 0,25-0,35MM² AG | 2 | 12520056954 | Shop at ECS Tuning | |||||
| B465*1B - Front radar sensor | ||||||||||
| 14 | Universal socket housing uncoded | 8 POL. | 1 | 61138364624 | $4.07 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AG | 6 | 61130085034 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | MQS Ø=3,6 | 2 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 6 | 61138727251 | Shop at ECS Tuning | |||||
| B49*1B - Ventilation grille, center | ||||||||||
| 15 | Plug housing | 12 POL. | 1 | 61136954518 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 10 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 10 | 61138727251 | Shop at ECS Tuning | |||||
| B51*1B - Front airbag sensor, left | ||||||||||
| 17 | Universal socket housing uncoded | 2 POL. | 1 | 12527543313 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCON 1.2 with cable | 0,25-0,35MM² AG | 2 | 12520056954 | Shop at ECS Tuning | |||||
| B512*1B - rear seat footwell temperature sensor |
||||||||||
| 18 | Universal socket housing uncoded | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 2 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| B513*1B - rear seat ventilation temperature sensor |
||||||||||
| 19 | Universal socket housing uncoded | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 3 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 3 | 61138727251 | Shop at ECS Tuning | |||||
