Plug connection from E123*1B-->E165*1B for BMW 7 Series G12 730Ld (2019)

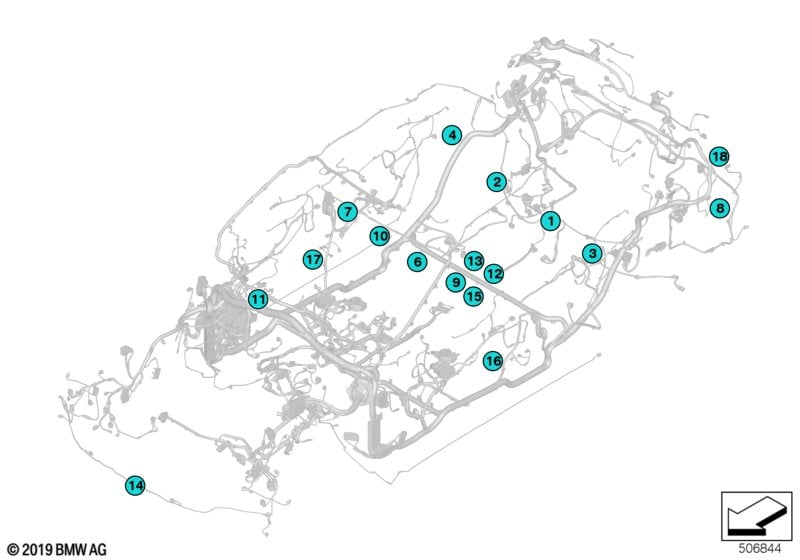

This Plug connection from E123*1B-->E165*1B technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| E123*1B - Vanity mirror light, rear left | ||||||||||
| 01 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| E124*1B - Vanity mirror light, right rear |
||||||||||
| 02 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| E125*1B - Interior light, rear left | ||||||||||
| 03 | Socket housing | 4 POL. KOD. C | 1 | 61139290809 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 4 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| E126*1B - Interior light, right rear | ||||||||||
| 04 | Socket housing | 4 POL. KOD. A | 1 | 61139277165 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 4 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| E13*1B - vanity mirror light, front left | ||||||||||
| 06 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| E132*1B - heating metering line | ||||||||||
| 08 | Universal socket housing uncoded | 2 POL. | 1 | 12527543313 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Cont.bush.MCON 1,2 sg.cond.seal w/cable | 1,0MM² AG | 2 | 61130085055 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| E144*1B - Heating ACC sensor | ||||||||||
| 14 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| E159*1B - diplexer, front left | ||||||||||
| 16 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| E159*2B - diplexer, front left | ||||||||||
| 16 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| E160*1B - diplexer, front right | ||||||||||
| 17 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| E160*2B - diplexer, front right | ||||||||||
| 17 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
