Wiring harness, seat, manual for BMW 3 Series G20 Sedan 320i (2020)

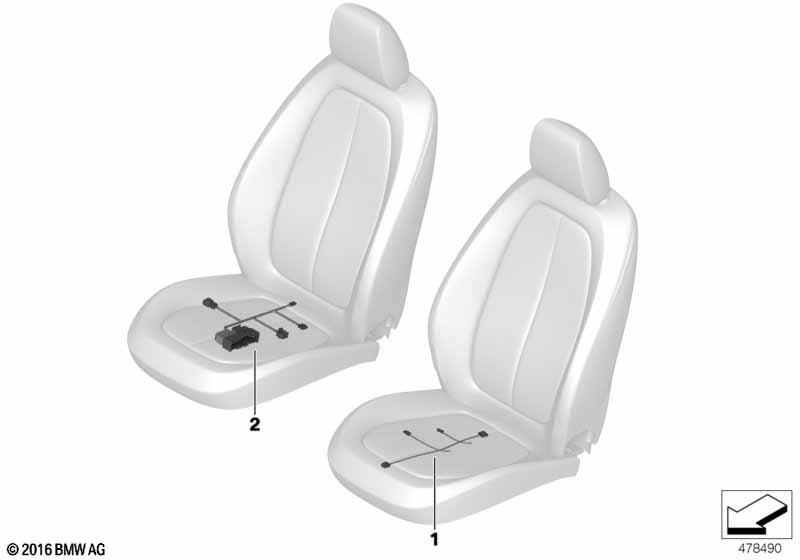

This Wiring harness, seat, manual technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Seat adjuster, electric, with memory |
S459A=No |
||||||||
| For vehicles with Sports seat |
S481A=No |
|||||||||
| 01 | Wiring set seat left | 1 | 61128716559 | Shop at ECS Tuning | ||||||
| For vehicles with Sports seat and Lumbar support, driver and passenger |
S481A=Yes S488A=No |
|||||||||
| 01 | Wiring set seat left | 1 | 61128716564 | Shop at ECS Tuning | ||||||
| For vehicles with Sports seat and Lumbar support, driver and passenger |
S481A=Yes S488A=Yes |
|||||||||
| 01 | Wiring set seat left | 1 | 61128716563 | Shop at ECS Tuning | ||||||
| For vehicles with Sports seat |
S481A=No |
|||||||||
| 02 | Wiring set seat right | 1 | 61128716519 | Shop at ECS Tuning | ||||||
| For vehicles with Sports seat and Lumbar support, driver and passenger |
S481A=Yes S488A=No |
|||||||||
| 02 | Wiring set seat right | 1 | 61128716522 | Shop at ECS Tuning | ||||||
| For vehicles with Sports seat and Lumbar support, driver and passenger |
S481A=Yes S488A=Yes |
|||||||||
| 02 | Wiring set seat right | 1 | 61128716523 | Shop at ECS Tuning | ||||||
