Operating unit audio for BMW 4 Series G22 Coupé 420iX (2024)

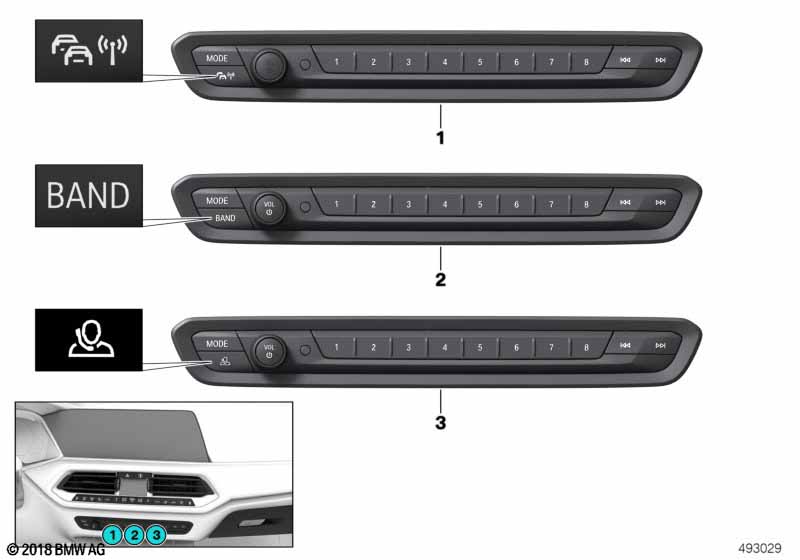

This Operating unit audio technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.

Operating unit audio
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=No

L8AAA=No

S645A=No

S825A=No

S8LHA=No

CX=Yes

OI=Yes
01 Audio control unit Audio Oyster 1 61315A47C58 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  Sensatec perforated/cognac, extended
  or
  Leather, Vernasca, cognac, gy stitching
L802A=No

L8AAA=No

S645A=No

S825A=No

S8LHA=No

PQ=Yes

KHKC=Yes

MAPQ=Yes
01 Audio control unit, Cognac 1 61315A47C52 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=No

L8AAA=No

S645A=No

S825A=No

S8LHA=No

CY=Yes

FO=Yes

FX=Yes

FY=Yes
01 Audio control unit, Canberra Beige 1 61315A47C55 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  Cloth "Checkered"
  or
  Natural leather 'Stellaric'
  or
  elfenbein-weiss
  or
  tacora-rot Dekorsteppung
  or
  tacora-rot
  or
  Black dec.top stitching
  or
  Fiona red / black
  or
  mokka Dekorsteppung
  or
  Black
  or
  Tartufo
L802A=No

L8AAA=No

S645A=No

S825A=No

S8LHA=No

AT=Yes

NL=Yes

EW=Yes

G6=Yes

G7=Yes

H7=Yes

HZ=Yes

MU=Yes

SW=Yes

TQ=Yes
01 Operating unit audio black 1 61315A47C61 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version China
and
BMW US Radio
and
Radio control Oceania
and
Country-spec.ctrl Hong Kong/Macao 04142
L802A=Yes

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=Yes
02 Operating unit audio black 1 61315A47C60 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version China
and
BMW US Radio
and
Radio control Oceania
and
Country-spec.ctrl Hong Kong/Macao 04142
L802A=Yes

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=No
02 Operating unit audio black 1 61315A47C60 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version China
and
BMW US Radio
and
Radio control Oceania
and
Country-spec.ctrl Hong Kong/Macao 04142
L802A=Yes

L8AAA=No

S645A=Yes

S825A=No

S8LHA=Yes
02 Operating unit audio black 1 61315A47C60 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version China
and
BMW US Radio
and
Radio control Oceania
and
Country-spec.ctrl Hong Kong/Macao 04142
L802A=Yes

L8AAA=No

S645A=Yes

S825A=No

S8LHA=No
02 Operating unit audio black 1 61315A47C60 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version China
and
BMW US Radio
and
Radio control Oceania
and
Country-spec.ctrl Hong Kong/Macao 04142
L802A=Yes

L8AAA=No

S645A=No

S825A=Yes

S8LHA=Yes
02 Operating unit audio black 1 61315A47C60 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version China
and
BMW US Radio
and
Radio control Oceania
and
Country-spec.ctrl Hong Kong/Macao 04142
L802A=Yes

L8AAA=No

S645A=No

S825A=Yes

S8LHA=No
02 Operating unit audio black 1 61315A47C60 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version China
and
BMW US Radio
and
Radio control Oceania
and
Country-spec.ctrl Hong Kong/Macao 04142
L802A=Yes

L8AAA=No

S645A=No

S825A=No

S8LHA=Yes
02 Operating unit audio black 1 61315A47C60 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version China
and
BMW US Radio
and
Radio control Oceania
and
Country-spec.ctrl Hong Kong/Macao 04142
L802A=Yes

L8AAA=No

S645A=No

S825A=No

S8LHA=No
02 Operating unit audio black 1 61315A47C60 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version China
and
BMW US Radio
and
Radio control Oceania
and
Country-spec.ctrl Hong Kong/Macao 04142
L802A=No

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=Yes
02 Operating unit audio black 1 61315A47C60 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version China
and
BMW US Radio
and
Radio control Oceania
and
Country-spec.ctrl Hong Kong/Macao 04142
L802A=No

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=No
02 Operating unit audio black 1 61315A47C60 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version China
and
BMW US Radio
and
Radio control Oceania
and
Country-spec.ctrl Hong Kong/Macao 04142
L802A=No

L8AAA=No

S645A=Yes

S825A=No

S8LHA=Yes
02 Operating unit audio black 1 61315A47C60 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version China
and
BMW US Radio
and
Radio control Oceania
and
Country-spec.ctrl Hong Kong/Macao 04142
L802A=No

L8AAA=No

S645A=Yes

S825A=No

S8LHA=No
02 Operating unit audio black 1 61315A47C60 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version China
and
BMW US Radio
and
Radio control Oceania
and
Country-spec.ctrl Hong Kong/Macao 04142
L802A=No

L8AAA=No

S645A=No

S825A=Yes

S8LHA=Yes
02 Operating unit audio black 1 61315A47C60 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version China
and
BMW US Radio
and
Radio control Oceania
and
Country-spec.ctrl Hong Kong/Macao 04142
L802A=No

L8AAA=No

S645A=No

S825A=Yes

S8LHA=No
02 Operating unit audio black 1 61315A47C60 Shop at ECS Tuning
For vehicles with
National version Korea
and
National version China
and
BMW US Radio
and
Radio control Oceania
and
Country-spec.ctrl Hong Kong/Macao 04142
L802A=No

L8AAA=No

S645A=No

S825A=No

S8LHA=Yes
02 Operating unit audio black 1 61315A47C60 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=Yes

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=Yes

CX=Yes

OI=Yes
02 Audio control unit Audio Oyster 1 61315A47C57 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=Yes

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=No

CX=Yes

OI=Yes
02 Audio control unit Audio Oyster 1 61315A47C57 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=Yes

L8AAA=No

S645A=Yes

S825A=No

S8LHA=Yes

CX=Yes

OI=Yes
02 Audio control unit Audio Oyster 1 61315A47C57 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=Yes

L8AAA=No

S645A=Yes

S825A=No

S8LHA=No

CX=Yes

OI=Yes
02 Audio control unit Audio Oyster 1 61315A47C57 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=Yes

L8AAA=No

S645A=No

S825A=Yes

S8LHA=Yes

CX=Yes

OI=Yes
02 Audio control unit Audio Oyster 1 61315A47C57 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=Yes

L8AAA=No

S645A=No

S825A=Yes

S8LHA=No

CX=Yes

OI=Yes
02 Audio control unit Audio Oyster 1 61315A47C57 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=Yes

L8AAA=No

S645A=No

S825A=No

S8LHA=Yes

CX=Yes

OI=Yes
02 Audio control unit Audio Oyster 1 61315A47C57 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=Yes

L8AAA=No

S645A=No

S825A=No

S8LHA=No

CX=Yes

OI=Yes
02 Audio control unit Audio Oyster 1 61315A47C57 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=No

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=Yes

CX=Yes

OI=Yes
02 Audio control unit Audio Oyster 1 61315A47C57 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=No

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=No

CX=Yes

OI=Yes
02 Audio control unit Audio Oyster 1 61315A47C57 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=No

L8AAA=No

S645A=Yes

S825A=No

S8LHA=Yes

CX=Yes

OI=Yes
02 Audio control unit Audio Oyster 1 61315A47C57 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=No

L8AAA=No

S645A=Yes

S825A=No

S8LHA=No

CX=Yes

OI=Yes
02 Audio control unit Audio Oyster 1 61315A47C57 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=No

L8AAA=No

S645A=No

S825A=Yes

S8LHA=Yes

CX=Yes

OI=Yes
02 Audio control unit Audio Oyster 1 61315A47C57 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=No

L8AAA=No

S645A=No

S825A=Yes

S8LHA=No

CX=Yes

OI=Yes
02 Audio control unit Audio Oyster 1 61315A47C57 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  oyster
  or
  moire-grau
L802A=No

L8AAA=No

S645A=No

S825A=No

S8LHA=Yes

CX=Yes

OI=Yes
02 Audio control unit Audio Oyster 1 61315A47C57 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  cognac
L802A=Yes

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=Yes

PQ=Yes

RI=Yes
02 Audio control unit, Cognac 1 61315A47C64 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  cognac
L802A=Yes

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=No

PQ=Yes

RI=Yes
02 Audio control unit, Cognac 1 61315A47C64 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  cognac
L802A=Yes

L8AAA=No

S645A=Yes

S825A=No

S8LHA=Yes

PQ=Yes

RI=Yes
02 Audio control unit, Cognac 1 61315A47C64 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  cognac
L802A=Yes

L8AAA=No

S645A=Yes

S825A=No

S8LHA=No

PQ=Yes

RI=Yes
02 Audio control unit, Cognac 1 61315A47C64 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  cognac
L802A=Yes

L8AAA=No

S645A=No

S825A=Yes

S8LHA=Yes

PQ=Yes

RI=Yes
02 Audio control unit, Cognac 1 61315A47C64 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  cognac
L802A=Yes

L8AAA=No

S645A=No

S825A=Yes

S8LHA=No

PQ=Yes

RI=Yes
02 Audio control unit, Cognac 1 61315A47C64 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  cognac
L802A=Yes

L8AAA=No

S645A=No

S825A=No

S8LHA=Yes

PQ=Yes

RI=Yes
02 Audio control unit, Cognac 1 61315A47C64 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  cognac
L802A=Yes

L8AAA=No

S645A=No

S825A=No

S8LHA=No

PQ=Yes

RI=Yes
02 Audio control unit, Cognac 1 61315A47C64 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  cognac
L802A=No

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=Yes

PQ=Yes

RI=Yes
02 Audio control unit, Cognac 1 61315A47C64 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  cognac
L802A=No

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=No

PQ=Yes

RI=Yes
02 Audio control unit, Cognac 1 61315A47C64 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  cognac
L802A=No

L8AAA=No

S645A=Yes

S825A=No

S8LHA=Yes

PQ=Yes

RI=Yes
02 Audio control unit, Cognac 1 61315A47C64 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  cognac
L802A=No

L8AAA=No

S645A=Yes

S825A=No

S8LHA=No

PQ=Yes

RI=Yes
02 Audio control unit, Cognac 1 61315A47C64 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  cognac
L802A=No

L8AAA=No

S645A=No

S825A=Yes

S8LHA=Yes

PQ=Yes

RI=Yes
02 Audio control unit, Cognac 1 61315A47C64 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  cognac
L802A=No

L8AAA=No

S645A=No

S825A=Yes

S8LHA=No

PQ=Yes

RI=Yes
02 Audio control unit, Cognac 1 61315A47C64 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  cognac Dekorsteppung
  or
  cognac
L802A=No

L8AAA=No

S645A=No

S825A=No

S8LHA=Yes

PQ=Yes

RI=Yes
02 Audio control unit, Cognac 1 61315A47C64 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=Yes

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=Yes

CY=Yes

FO=Yes

FX=Yes

FY=Yes
02 Audio control unit, Canberra Beige 1 61315A47C54 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=Yes

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=No

CY=Yes

FO=Yes

FX=Yes

FY=Yes
02 Audio control unit, Canberra Beige 1 61315A47C54 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=Yes

L8AAA=No

S645A=Yes

S825A=No

S8LHA=Yes

CY=Yes

FO=Yes

FX=Yes

FY=Yes
02 Audio control unit, Canberra Beige 1 61315A47C54 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=Yes

L8AAA=No

S645A=Yes

S825A=No

S8LHA=No

CY=Yes

FO=Yes

FX=Yes

FY=Yes
02 Audio control unit, Canberra Beige 1 61315A47C54 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=Yes

L8AAA=No

S645A=No

S825A=Yes

S8LHA=Yes

CY=Yes

FO=Yes

FX=Yes

FY=Yes
02 Audio control unit, Canberra Beige 1 61315A47C54 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=Yes

L8AAA=No

S645A=No

S825A=Yes

S8LHA=No

CY=Yes

FO=Yes

FX=Yes

FY=Yes
02 Audio control unit, Canberra Beige 1 61315A47C54 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=Yes

L8AAA=No

S645A=No

S825A=No

S8LHA=Yes

CY=Yes

FO=Yes

FX=Yes

FY=Yes
02 Audio control unit, Canberra Beige 1 61315A47C54 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=Yes

L8AAA=No

S645A=No

S825A=No

S8LHA=No

CY=Yes

FO=Yes

FX=Yes

FY=Yes
02 Audio control unit, Canberra Beige 1 61315A47C54 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=No

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=Yes

CY=Yes

FO=Yes

FX=Yes

FY=Yes
02 Audio control unit, Canberra Beige 1 61315A47C54 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=No

L8AAA=No

S645A=Yes

S825A=Yes

S8LHA=No

CY=Yes

FO=Yes

FX=Yes

FY=Yes
02 Audio control unit, Canberra Beige 1 61315A47C54 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=No

L8AAA=No

S645A=Yes

S825A=No

S8LHA=Yes

CY=Yes

FO=Yes

FX=Yes

FY=Yes
02 Audio control unit, Canberra Beige 1 61315A47C54 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=No

L8AAA=No

S645A=Yes

S825A=No

S8LHA=No

CY=Yes

FO=Yes

FX=Yes

FY=Yes
02 Audio control unit, Canberra Beige 1 61315A47C54 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=No

L8AAA=No

S645A=No

S825A=Yes

S8LHA=Yes

CY=Yes

FO=Yes

FX=Yes

FY=Yes
02 Audio control unit, Canberra Beige 1 61315A47C54 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=No

L8AAA=No

S645A=No

S825A=Yes

S8LHA=No

CY=Yes

FO=Yes

FX=Yes

FY=Yes
02 Audio control unit, Canberra Beige 1 61315A47C54 Shop at ECS Tuning
For vehicles with
  National version Korea
  and
  National version China
  and
  BMW US Radio
  and
  Radio control Oceania
  and
  Country-spec.ctrl Hong Kong/Macao 04142
and
  canberra-beige
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige Dekorsteppung
  or
  canberra-beige
L802A=No

L8AAA=No

S645A=No

S825A=No

S8LHA=Yes

CY=Yes

FO=Yes

FX=Yes

FY=Yes
02 Audio control unit, Canberra Beige 1 61315A47C54 Shop at ECS Tuning
For vehicles with
National version China
and
  oyster
  or
  moire-grau
L8AAA=Yes

CX=Yes

OI=Yes
03 Audio control unit Audio Oyster 1 61317949458 Shop at ECS Tuning
For vehicles with
National version China
and
  cognac Dekorsteppung
  or
  cognac
L8AAA=Yes

PQ=Yes

RI=Yes
03 Audio control unit, Cognac 1 61315A47C63 Shop at ECS Tuning
For vehicles with
National version China
and
  Natural leather 'Stellaric'
  or
  elfenbein-weiss
  or
  tacora-rot Dekorsteppung
  or
  tacora-rot
  or
  Black dec.top stitching
  or
  Fiona red / black
  or
  mokka Dekorsteppung
  or
  Black
  or
  Tartufo
L8AAA=Yes

NL=Yes

EW=Yes

G6=Yes

G7=Yes

H7=Yes

HZ=Yes

MU=Yes

SW=Yes

TQ=Yes
03 Operating unit audio black 1 61315A47C59 Shop at ECS Tuning

See Also

REP.CABLE F.MAIN WIRING HARNESS - FRONT REP.CABLE F.MAIN WIRING HARNESS - FRONT
REP.CABLE MAIN WIRING HARNESS HSD REP.CABLE MAIN WIRING HARNESS HSD
WIRING HARNESS REPAIR CABLE ANTENNA/COAX WIRING HARNESS REPAIR CABLE ANTENNA/COAX
REP.CABLE F.MAIN WIRING HARNESS - REAR REP.CABLE F.MAIN WIRING HARNESS - REAR
SUPPLY CABLE MAIN WIRING HARNESS SUPPLY CABLE MAIN WIRING HARNESS
REPAIR CABLE, ETHERNET REPAIR CABLE, ETHERNET
REPAIR CABLE MAIN WIRING HARN.SHIELDED REPAIR CABLE MAIN WIRING HARN.SHIELDED
CABLE-YARDED MATERIAL CABLE-YARDED MATERIAL
VARIOUS ADDITIONAL CABLE HARNESSES VARIOUS ADDITIONAL CABLE HARNESSES
SCOPE OF REPAIR WORK FOR AIRBAG SCOPE OF REPAIR WORK FOR AIRBAG
DOOR WIRING HARNESS DOOR WIRING HARNESS
WIRING HARNESS, SEAT, MANUAL WIRING HARNESS, SEAT, MANUAL
WIRING HARNESS SEAT ELECTR.WITH MEMORY WIRING HARNESS SEAT ELECTR.WITH MEMORY
BATTERY CABLE/EARTH CABLE BATTERY CABLE/EARTH CABLE
48 V ELECTRICAL SYSTEM 48 V ELECTRICAL SYSTEM
VARIOUS COMB-TYPE CONNECTORS VARIOUS COMB-TYPE CONNECTORS
WIRING HARNESS COVERS/CABLE DUCTS WIRING HARNESS COVERS/CABLE DUCTS
VARIOUS CABLE HOLDERS VARIOUS CABLE HOLDERS
REPAIR PARTS, COAXIAL CABLE HOUSING REPAIR PARTS, COAXIAL CABLE HOUSING
REPAIR PARTS, COAXIAL CABLE CONTACTS REPAIR PARTS, COAXIAL CABLE CONTACTS

Frequently Asked Questions

What assembly is shown in the BMW 4 Series G22 Coupé 420iX Operating unit audio?
This technical diagram illustrates the Operating unit audio within the Vehicle electrical system group for the 4 Series G22 Coupé 420iX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Audio control unit Audio Oyster (Part #61315A47C58).
Which models use the hardware listed in this Operating unit audio?
The hardware and components featured in the Operating unit audio are specific to the 4 Series G22 Coupé 420iX produced during 2024. These technical specifications ensure that parts like the Audio control unit Audio Oyster (61315A47C58) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Operating unit audio assembly?
Each item in the Operating unit audio corresponds to the numbered list below the illustration. For the 4 Series G22 Coupé 420iX, you can identify the Audio control unit Audio Oyster by locating its position on the schematic, which then links to the official BMW part number 61315A47C58 for the Vehicle electrical system section.
