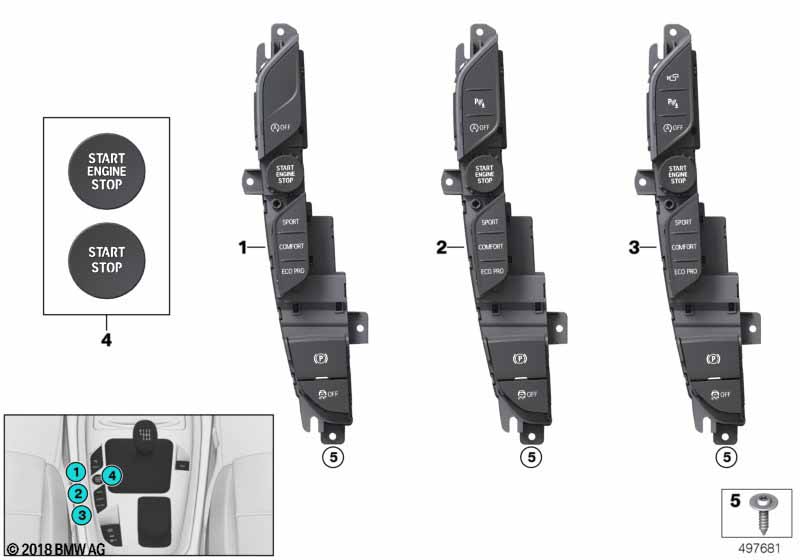

Control panel center console for BMW 3 Series G20 Sedan 330e (2019)
This Control panel center console technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic transmission and Sport automatic transmission and Sport transmission w/ dual-plate clutch and Steptronic with twin-clutch gearbox |
S205A=No S2TBA=No S2TCA=No S2TFA=No |
||||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=No S5DNA=No |
|||||||||
| 01 | Control panel center console | 1 | 61315A1CA54 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=Yes S5DNA=No |
|||||||||
| 02 | Control panel center console | 1 | 61315A1CA56 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=Yes S5DMA=No S5DNA=No |
|||||||||
| 02 | Control panel center console | 1 | 61315A1CA56 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=Yes S5DNA=No |
|||||||||
| 02 | Control panel center console | 1 | 61315A1CA56 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC) and Parking assistance system and Parking assistance system Plus |
S508A=No S5DMA=No S5DNA=Yes |
|||||||||
| 03 | Control panel center console | 1 | 61315A1CA58 | Shop at ECS Tuning | ||||||
| 04 | Repair kit, trim for Start-Stop switches | 1 | 61319475062 | Shop at ECS Tuning | ||||||
| 05 | Fillister head screw | DELTA PT4X16 | 4 | 07149197038 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 330e Control panel center console?
- This technical diagram illustrates the Control panel center console within the Vehicle electrical system group for the 3 Series G20 Sedan 330e produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Control panel center console (Part #61315A1CA54).
- Which models use the hardware listed in this Control panel center console?
- The hardware and components featured in the Control panel center console are specific to the 3 Series G20 Sedan 330e produced during 2019. These technical specifications ensure that parts like the Control panel center console (61315A1CA54) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control panel center console assembly?
- Each item in the Control panel center console corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 330e, you can identify the Control panel center console by locating its position on the schematic, which then links to the official BMW part number 61315A1CA54 for the Vehicle electrical system section.
