Wiring harness repair cable antenna/coax for BMW 3 Series G21 Touring 320dX (2022)

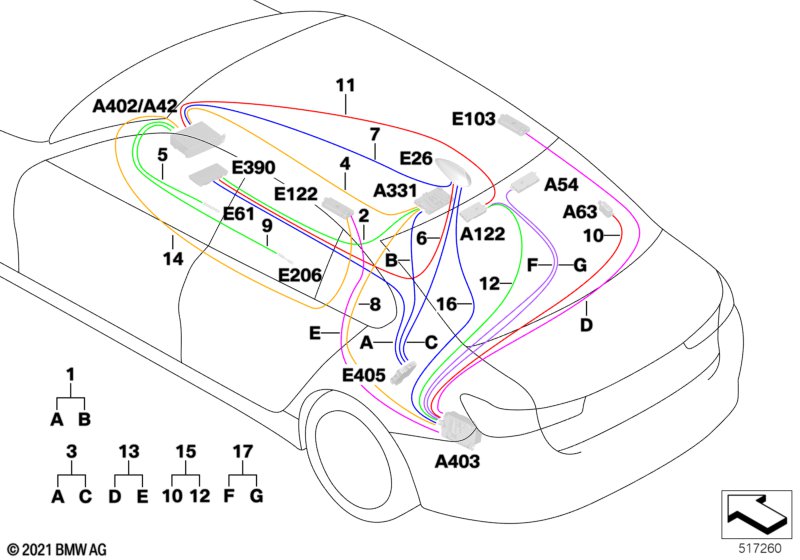

This Wiring harness repair cable antenna/coax technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| only suitable for use with automatic transmission |
||||||||||
| 01 | Repair module storage wireless charging | 1 | 61119436460 | Shop at ECS Tuning | ||||||
| Only applies to manual gearbox | ||||||||||
| 01 | Repair module storage wireless charging | 1 | 61119436462 | Shop at ECS Tuning | ||||||
| only suitable for use with automatic transmission |
||||||||||
| 02 | Repair module storage wireless charging | L= 5287MM | 1 | 61119436464 | Shop at ECS Tuning | |||||
| Only applies to manual gearbox | ||||||||||
| 02 | Repair module storage wireless charging | L= 5742MM | 1 | 61119436466 | Shop at ECS Tuning | |||||
| only suitable for use with automatic transmission |
||||||||||
| 03 | Repair module storage wireless charging | 1 | 61119436468 | Shop at ECS Tuning | ||||||
| Only applies to manual gearbox | ||||||||||
| 03 | Repair module storage wireless charging | 1 | 61119436470 | Shop at ECS Tuning | ||||||
| 05 | Antenna cable, Bluetooth antenna | L= 745MM | 1 | 61118718723 | Shop at ECS Tuning | |||||
| only suitable for use with automatic transmission |
||||||||||
| 06 | Repair module storage wireless charging | 1 | 61119436472 | Shop at ECS Tuning | ||||||
| Only applies to manual gearbox | ||||||||||
| 06 | Repair module storage wireless charging | L= 5821MM | 1 | 61119436474 | Shop at ECS Tuning | |||||
| 07 | Antenna cable GPS | L= 5365MM | 1 | 61119436481 | Shop at ECS Tuning | |||||
| 09 | Rep. guide for WLAN cable antenna | L= 1200MM | 1 | 61118718737 | Shop at ECS Tuning | |||||
| 11 | Rep.module aerial lines FM1/ FM2 | L= 6701MM | 1 | 61119436494 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner |
S654A=Yes |
|||||||||
| 11 | Rep.module antennas DAB | L= 4086MM | 1 | 61119436491 | Shop at ECS Tuning | |||||
| For vehicles with BMW Live dashboard Professional |
S6U3A=Yes |
|||||||||
| 12 | Rep.module aerial lines FM1/ FM2 | L= 3711MM | 1 | 61119436495 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and TV function and BMW Live dashboard Professional |
L807A=Yes S601A=Yes S6U3A=Yes |
|||||||||
| 12 | Rep.module aerial lines RAM | L= 3702MM | 1 | 61119436500 | Shop at ECS Tuning | |||||
| For vehicles with DAB tuner and BMW Live dashboard Professional |
S654A=Yes S6U3A=Yes |
|||||||||
| 13 | Rep.module antennas DAB | L= 3812MM | 1 | 61119436489 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and TV function and BMW Live dashboard Professional |
L807A=Yes S601A=Yes S6U3A=Yes |
|||||||||
| 13 | Rep.module aerial lines RAM | 1 | 61119436498 | Shop at ECS Tuning | ||||||
| For vehicles with DAB tuner |
S654A=Yes |
|||||||||
| 14 | Rep.module antennas DAB | L= 4086MM | 1 | 61119436491 | Shop at ECS Tuning | |||||
