Supply cable main wiring harness for BMW 3 Series G20 Sedan 320dX (2022)

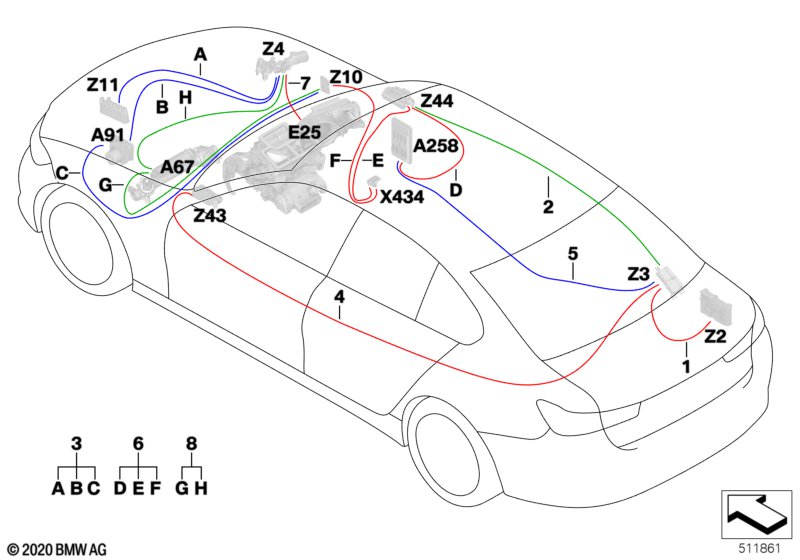

This Supply cable main wiring harness technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supply line power distribution box | 35MM²/L= 575MM | 1 | 61129835596 | Shop at ECS Tuning | |||||
| 02 | Supply line, pos.battery term.distrib. | 42MM²/L= 3010MM | 1 | 61129835616 | Shop at ECS Tuning | |||||
| 03 | Repair module power supply lines | 1 | 61129835597 | Shop at ECS Tuning | ||||||
| 04 | Supply line, pos.battery term.distrib. | 27MM²/L= 5093MM | 1 | 61129835613 | Shop at ECS Tuning | |||||
| 05 | Suppl.line, pos.batt.term.distrib./BDC | 6MM²/L=3193MM | 1 | 61129835612 | Shop at ECS Tuning | |||||
| 06 | Repair module power supply lines | 1 | 61129835599 | Shop at ECS Tuning | ||||||
| 07 | Power supply line PTC auxiliary heater | L= 1921MM | 1 | 61118721997 | Shop at ECS Tuning | |||||
| 08 | Rep. module EPS | 1 | 61118720427 | Shop at ECS Tuning | ||||||
| 08 | Rep. module EPS | 1 | 61118720430 | Shop at ECS Tuning | ||||||
| For vehicles with Variable Sport steering |
S2VLA=Yes |
|||||||||
| 08 | Rep. module EPS | 1 | 61118720425 | Shop at ECS Tuning | ||||||
