Dual storage system mounted parts for BMW 5 Series G30 LCI 530iX (2022)

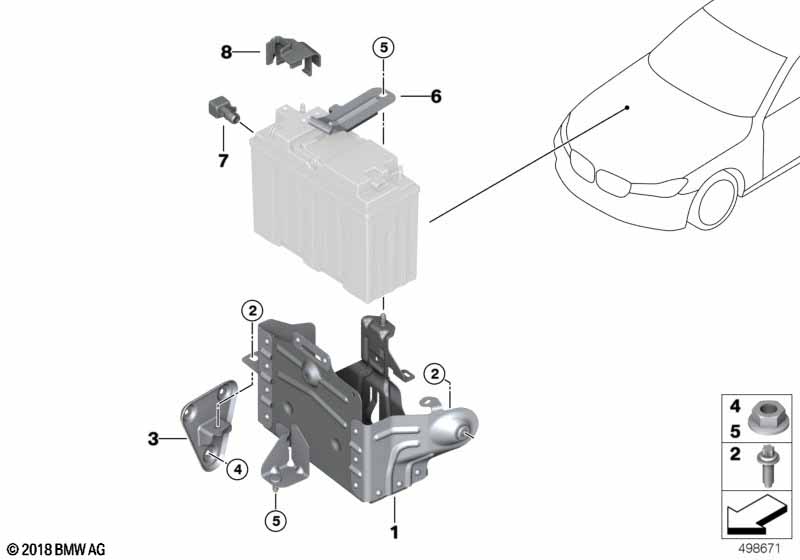

This Dual storage system mounted parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery tray plus dual storage system | 1 | 61216832931 | Shop at ECS Tuning | ||||||
| 02 | ASA-Bolt | M8X25 | 2 | 07147316809 | Shop at ECS Tuning | |||||
| 03 | Support for battery tray | 1 | 61216827078 | Shop at ECS Tuning | ||||||
| 04 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M8-ZNS3 | 1 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| 06 | Battery bracket | 1 | 61216826110 | Shop at ECS Tuning | ||||||
| 07 | Connection elbow | 1 | 61218801340 | Shop at ECS Tuning | ||||||
| 08 | Cover positive battery terminal | 1 | 61216826355 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 LCI 530iX Dual storage system mounted parts?
- This technical diagram illustrates the Dual storage system mounted parts within the Vehicle electrical system group for the 5 Series G30 LCI 530iX produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Battery tray plus dual storage system (Part #61216832931).
- Which models use the hardware listed in this Dual storage system mounted parts?
- The hardware and components featured in the Dual storage system mounted parts are specific to the 5 Series G30 LCI 530iX produced during 2022. These technical specifications ensure that parts like the Battery tray plus dual storage system (61216832931) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Dual storage system mounted parts assembly?
- Each item in the Dual storage system mounted parts corresponds to the numbered list below the illustration. For the 5 Series G30 LCI 530iX, you can identify the Battery tray plus dual storage system by locating its position on the schematic, which then links to the official BMW part number 61216832931 for the Vehicle electrical system section.
