Horn for BMW 1 Series F40 120dX (2023)

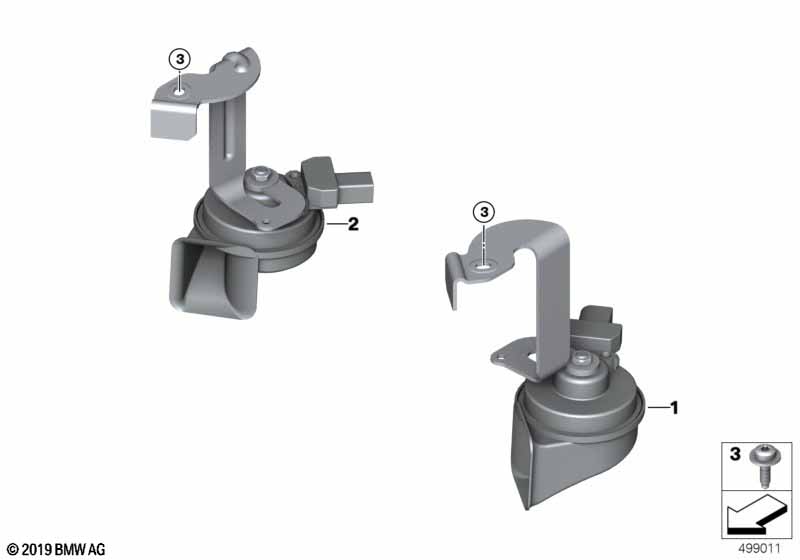

This Horn technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 120dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||
| 01 | Horn, high pitch | 1 | 61337214930 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Horn, high pitch | M | 1 | 61337933222 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||
| 02 | Horn, low pitch | 1 | 61337214931 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 02 | Horn, low pitch | 1 | 61337933223 | Shop at ECS Tuning | ||||||
| 03 | Countersunk screw | M6X20-PCU2-10.9 | 2 | 07119908698 | Shop at ECS Tuning | |||||
