Various grommets / seals for BMW 3 Series G20 Sedan 330e (2019)

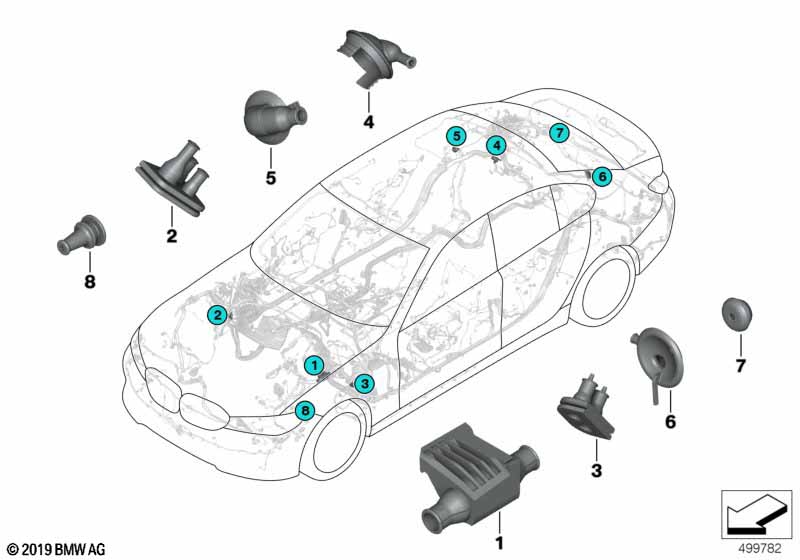

This Various grommets / seals technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grommet for spring strut mount, right | 1 | 61138736672 | Shop at ECS Tuning | ||||||
| 01 | Grommet for spring strut mount, left | 1 | 61138736673 | Shop at ECS Tuning | ||||||
| 02 | Nozzle wheel well front | 1 | 61136991098 | Shop at ECS Tuning | ||||||
| 03 | Nozzle wheel well front | 1 | 61136991098 | Shop at ECS Tuning | ||||||
| 04 | Nozzle wheel well front | 1 | 61136991098 | Shop at ECS Tuning | ||||||
| 05 | Nozzle wheel well front | 1 | 61139325450 | Shop at ECS Tuning | ||||||
| 06 | Nozzle wheel well front | 1 | 61136829047 | Shop at ECS Tuning | ||||||
| 07 | Grommet | 1 | 61138790403 | Shop at ECS Tuning | ||||||
| 08 | Grommet for submersed tube sensor | 1 | 61139236491 | Shop at ECS Tuning | ||||||
| 09 | Cable grommet | 1 | 61138357453 | Shop at ECS Tuning | ||||||
| 10 | Grommet | 1 | 61139299508 | Shop at ECS Tuning |
