Single parts for rear window cleaning for BMW 3 Series G21 Touring 330dX (2020)

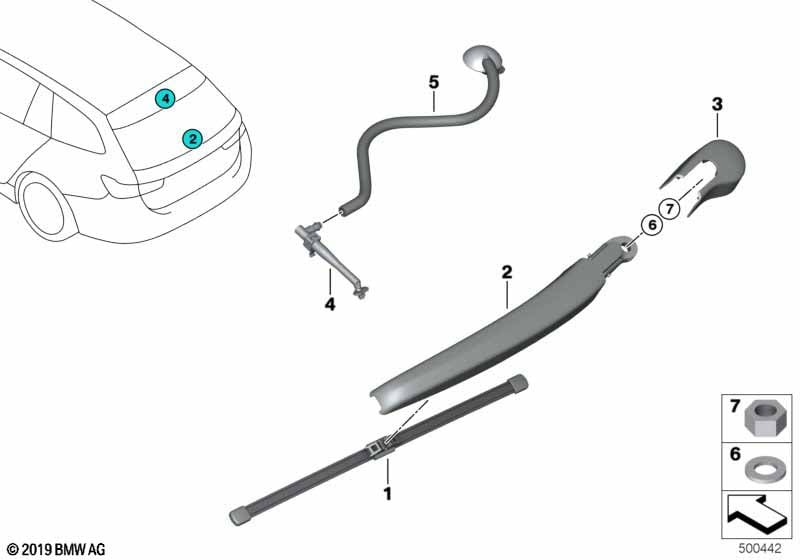

This Single parts for rear window cleaning technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper blade | 1 | 61627468054 | Shop at ECS Tuning | ||||||
| 02 | Rear window wiper arm | 1 | 61627468053 | Shop at ECS Tuning | ||||||
| 03 | Wiper arm cover | 1 | 61627403859 | Shop at ECS Tuning | ||||||
| 04 | Rear washer jet with hose | 1 | 61687468050 | Shop at ECS Tuning | ||||||
| 05 | Hose line | 1 | 61668362762 | $2.92 | Shop at ECS Tuning | |||||
| 06 | Washer | 8-200-ZNS3 | 1 | 07119904826 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring 330dX Single parts for rear window cleaning?
- This technical diagram illustrates the Single parts for rear window cleaning within the Vehicle electrical system group for the 3 Series G21 Touring 330dX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Wiper blade (Part #61627468054).
- Which models use the hardware listed in this Single parts for rear window cleaning?
- The hardware and components featured in the Single parts for rear window cleaning are specific to the 3 Series G21 Touring 330dX produced during 2020. These technical specifications ensure that parts like the Wiper blade (61627468054) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts for rear window cleaning assembly?
- Each item in the Single parts for rear window cleaning corresponds to the numbered list below the illustration. For the 3 Series G21 Touring 330dX, you can identify the Wiper blade by locating its position on the schematic, which then links to the official BMW part number 61627468054 for the Vehicle electrical system section.
