Plug connection from E240*1B-->E357*1B for BMW 3 Series G20 Sedan LCI 330i (2025)

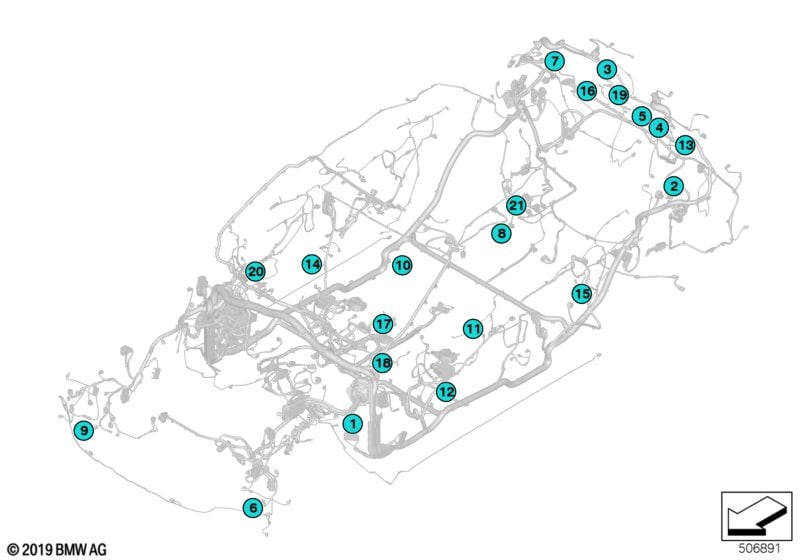

This Plug connection from E240*1B-->E357*1B technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| E240*1B - status display charging process |
||||||||||
| 01 | Socket housing | 4-POLIG | 1 | 12527513331 | $2.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 4 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Cont.bush.MCON 1,2 sg.cond.seal w/cable | 0,5-0,75MM² AG | 4 | 12520056374 | Shop at ECS Tuning | |||||
| E245*1B - Luggage compartment antenna | ||||||||||
| 02 | Universal socket housing uncoded | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 2 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| E29*1B - fog lamp, left | ||||||||||
| 06 | Universal socket housing uncoded | 2 POL. | 1 | 12527543313 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Cont.bush.MCON 1,2 sg.cond.seal w/cable | 0,5-0,75MM² AG | 2 | 12520056374 | Shop at ECS Tuning | |||||
| E3*1B - rear window heating | ||||||||||
| 07 | Pin terminal | 1 POL. | 1 | 61131378465 | $1.62 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Circular contact 2.5 with cable | 2,5-4,0MM² AG | 1 | 61130085057 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 3,5-6,0MM² | 1 | 61138727249 | Shop at ECS Tuning | |||||
| E31*1B - fog lamp right | ||||||||||
| 09 | Universal socket housing uncoded | 2 POL. | 1 | 12527543313 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Cont.bush.MCON 1,2 sg.cond.seal w/cable | 0,5-0,75MM² AG | 2 | 12520056374 | Shop at ECS Tuning | |||||
| E32*1B - footwell light, rear, rear passenger's side |
||||||||||
| 10 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| E33*1B - license plate light left | ||||||||||
| 13 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| E34*1B - trunk light | ||||||||||
| 16 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| E349*1B - lighting, fresh air grille, left |
||||||||||
| 18 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| E35*1B - license plate light, right | ||||||||||
| 19 | Universal socket housing uncoded | 2 POL. | 1 | 61136925634 | $1.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 2 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| E350*2B - lighting, fresh air grille right |
||||||||||
| 20 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| E350*1B - lighting, fresh air grille, right |
||||||||||
| 20 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
