Plug connection from E358*1B-->E405*1B for BMW XM G09 XM (2025)

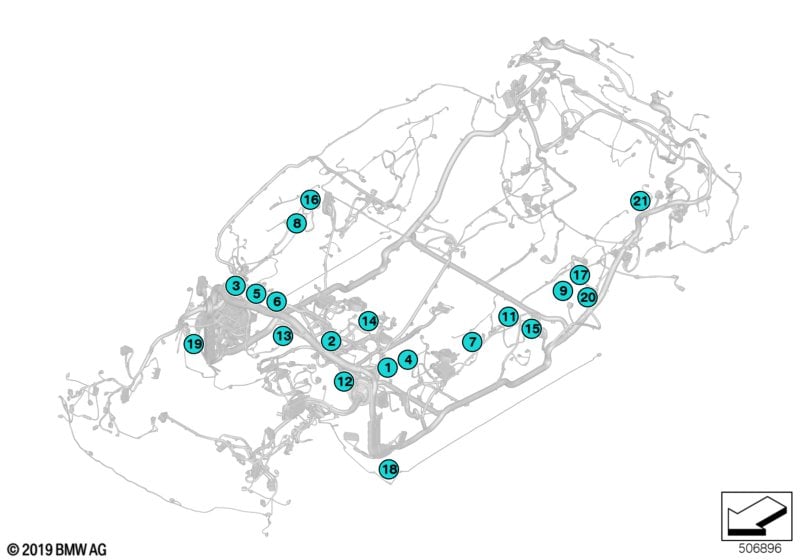

This Plug connection from E358*1B-->E405*1B technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| E358*1B - lighting, instrument panel, driver's side, lower |
||||||||||
| 01 | Socket housing | 4 POL. KOD. D | 1 | 61139362831 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 4 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| E359*1B - lighting instrument panel, center, lower |
||||||||||
| 02 | Socket housing | 4 POL. KOD. B | 1 | 61139288151 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 4 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| E360*1B - lighting, instrument panel, passenger's side, lower |
||||||||||
| 03 | Socket housing | 4 POL. KOD. D | 1 | 61139362831 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 4 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| E363*1B - lighting, instrument panel, passenger's side, upper |
||||||||||
| 05 | Socket housing | 4 POL. KOD. B | 1 | 61139288151 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 4 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| E364*1B - lighting, instrument panel, passenger's side |
||||||||||
| 06 | Socket housing | 4 POL. KOD. D | 1 | 61139362831 | NoS | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 4 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| E365*1B - lighting, door panel, driver's door, upper |
||||||||||
| 07 | Socket housing | 4 POL. KOD. B | 1 | 61139288151 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 4 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| E366*1B - lighting, door panel, front passenger door, upper |
||||||||||
| 08 | Socket housing | 4 POL. KOD. B | 1 | 61139288151 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 4 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| E367*1B - lighting, door panel, driver's side, rear |
||||||||||
| 09 | Socket housing | 4 POL. KOD. B | 1 | 61139288151 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 4 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| E38*1B - footwell light, front left | ||||||||||
| 12 | Universal socket housing uncoded | 4 POL. | 1 | 61138380696 | $0.93 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 4 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| E39*1B - footwell light, front right | ||||||||||
| 13 | Universal socket housing uncoded | 4 POL. | 1 | 61138380696 | $0.93 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 4 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| E390*1B - wireless charging storage | ||||||||||
| 14 | Universal socket housing uncoded | 6 POL. | 1 | 61136909058 | $1.15 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 5 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 5 | 61138727251 | Shop at ECS Tuning | |||||
| E399*1B - light carpet, left | ||||||||||
| 18 | Universal socket housing uncoded | 2 POL. | 1 | 61138795954 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 1 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AG | 1 | 61130085034 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 1 | 61138727252 | Shop at ECS Tuning | |||||
| E400*1B - Light carpet, right | ||||||||||
| 19 | Universal socket housing uncoded | 2 POL. | 1 | 61138795954 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 1 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AG | 1 | 61130085034 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 1 | 61138727252 | Shop at ECS Tuning | |||||
| E405*1B - antenna amplifier Wireless | ||||||||||
| 21 | Universal socket housing uncoded | 4 POL. | 1 | 61138380696 | $0.93 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 3 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 3 | 61138727251 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
