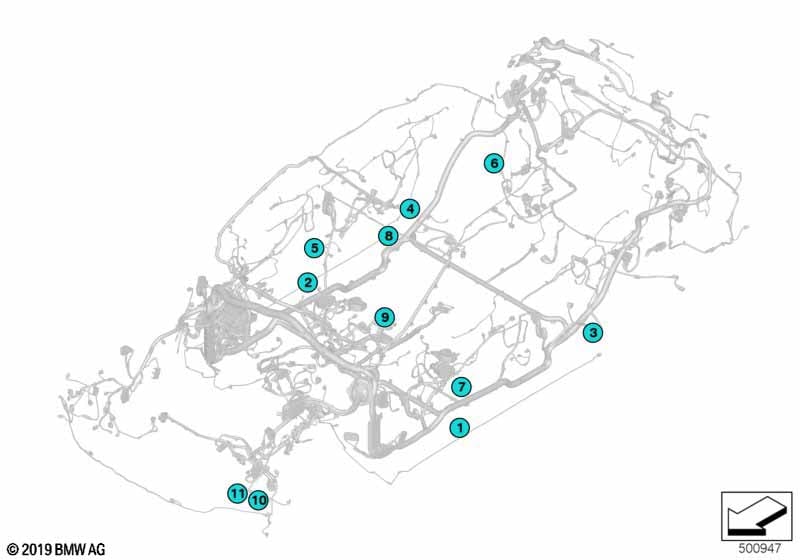

Plug connection from E76*1B-->E86*1B for BMW 7 Series G12 730LdX (2018)
This Plug connection from E76*1B-->E86*1B technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| E76*1B - door sill light strip, front left |
||||||||||
| 01 | Universal pin terminal uncoded | 3 POL. | 1 | 61136931929 | $2.00 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pin contact MQS with cable | 0,2-0,35 QMM AG | 2 | 61130070578 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| E77*1B - door sill light strip, front RT | ||||||||||
| 02 | Universal pin terminal uncoded | 3 POL. | 1 | 61136931929 | $2.00 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pin contact MQS with cable | 0,2-0,35 QMM AG | 2 | 61130070578 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| E78*1B - door sill light strip, rear left |
||||||||||
| 03 | Universal pin terminal uncoded | 3 POL. | 1 | 61136931929 | $2.00 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pin contact MQS with cable | 0,2-0,35 QMM AG | 2 | 61130070578 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| E79*1B - door sill light strip, rear right |
||||||||||
| 04 | Universal pin terminal uncoded | 3 POL. | 1 | 61136931929 | $2.00 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pin contact MQS with cable | 0,2-0,35 QMM AG | 2 | 61130070578 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| E80*1B - Entrance light, front passenger door |
||||||||||
| 05 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| E81*1B - interior light, rear | ||||||||||
| 06 | Socket housing | 4 POL. KOD. A | 1 | 61139277165 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing NanoMQS with cable | 0,22-0,35MM² AG | 4 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
| E82*1B - entrance light driver's door | ||||||||||
| 07 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| E84*2B - interior antenna center console | ||||||||||
| 09 | Universal socket housing uncoded | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 2 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| E85*1B - stationary auxiliary heater | ||||||||||
| 10 | Universal socket housing uncoded | 6 POL. | 1 | 61138383300 | $3.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 2 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AG | 1 | 61130085034 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | MQS Ø=3,6 | 3 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| E85*2B - stationary auxiliary heater | ||||||||||
| 10 | Socket housing | 2 POL. | 1 | 12527601023 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 1,5-2,5MM² AG | 2 | 61132471790 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| E86*1B - headlight, left | ||||||||||
| 11 | Socket housing | 6 POL. KOD A | 1 | 07/2022 | 61136992166 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AG | 2 | 07/2022 | 61130085034 | Shop at ECS Tuning | ||||
| -- | Covering cap | 1 | 07/2022 | 61136992169 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | MQS Ø=3,6 | 2 | 07/2022 | 61138366249 | $0.20 | Shop at ECS Tuning | |||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 07/2022 | 61138727250 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 07/2022 | 61138727251 | Shop at ECS Tuning | ||||
| -- | Cont.bush.MCON 2,8 sg.cond.seal w/cable | 1,5-2,5MM² AG | 2 | 07/2022 | 12520070573 | Shop at ECS Tuning | ||||
| 11 | Socket housing uncoded | 6 POL. | 1 | 61136992168 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AG | 2 | 61130085034 | Shop at ECS Tuning | |||||
| -- | Covering cap | 1 | 61136992169 | Shop at ECS Tuning | ||||||
| -- | Dummy grommet | MQS Ø=3,6 | 2 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Cont.bush.MCON 2,8 sg.cond.seal w/cable | 1,5-2,5MM² AG | 2 | 12520070573 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
