Plug connection from H1*1B-->M176*1B for BMW 3 Series G20 Sedan 330i (2022)

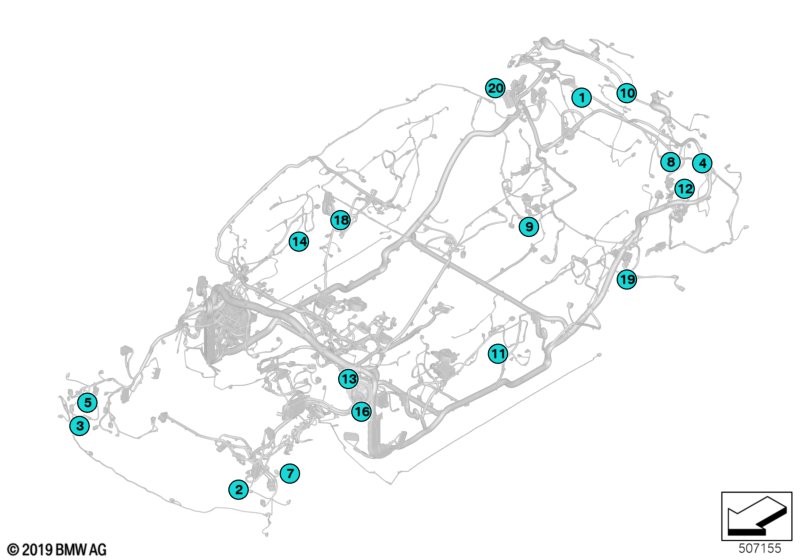

This Plug connection from H1*1B-->M176*1B technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| H1*1B - SINE | ||||||||||
| 01 | Rep. kit for socket housing | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| H2*1B - Fanfare bass | ||||||||||
| 02 | Socket housing | 2 POL. | 1 | 12527601023 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,75-1,0MM² AG | 2 | 61132471839 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| H3*1B - Fanfare tweeter | ||||||||||
| 03 | Socket housing | 2 POL. | 1 | 12527601023 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,75-1,0MM² AG | 2 | 61132471839 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| H6*1B - acoustic transmitter trunk lid lift |
||||||||||
| 04 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| K5*2B - Cutoff relay electric fan | ||||||||||
| 05 | Relais base | 1 | 61139207914 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Ct.bush.MCP 6.3 sgl.conductor seal w/cbl | 0,5-1,0 MM² AG | 2 | 61130085060 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| K5*1B - cutoff relay electric fan | ||||||||||
| 05 | Universal socket housing uncoded | 2 POL. | 1 | 12527543313 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Cont.bush.MCON 1,2 sg.cond.seal w/cable | 0,5-0,75MM² AG | 2 | 12520056374 | Shop at ECS Tuning | |||||
| 05 | Relais base | 1 | 61139207914 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Ct.bush.MCP 6.3 sgl.conductor seal w/cbl | 0,5-1,0 MM² AG | 2 | 61130085060 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| M109*1B - rear wiper | ||||||||||
| 10 | Universal MPQ socket housing uncoded | 3 POL. | 1 | 61136984742 | $3.17 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,35-0,5 MM² SN | 1 | 61130056946 | Shop at ECS Tuning | |||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² AG | 2 | 61130070576 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| M110*1B - rear washer pump | ||||||||||
| 12 | Universal socket housing uncoded | 2 POL. | 1 | 61138364520 | $1.52 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Double flat spring contact, MDK3 w. wire | 0,5-1,0 MM² AG | 2 | 61130070586 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| M12*1B - WIM | ||||||||||
| 13 | Socket housing | 4 POL. | 1 | 61139144234 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA with wire | 1,5-2,5MM² AG | 3 | 61132471790 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 3 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,22-0,35MM² AG | 1 | 12522462172 | Shop at ECS Tuning | |||||
| M17*1B - slide/tilt sunroof drive | ||||||||||
| 18 | Socket housing, uncloded | 6-POL. | 1 | 61139149190 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 1 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² AG | 1 | 61130070576 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 1 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 1 | 61138727251 | Shop at ECS Tuning | |||||
| M175*1B - Transfer pump | ||||||||||
| 19 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| M176*1B - Fuel filler flap servodrive | ||||||||||
| 20 | Universal socket housing uncoded | 4-POLIG | 1 | 12527549033 | $2.53 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 4 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Cont.bush.MCON 1,2 sg.cond.seal w/cable | 0,5-0,75MM² AG | 4 | 12520056374 | Shop at ECS Tuning | |||||
