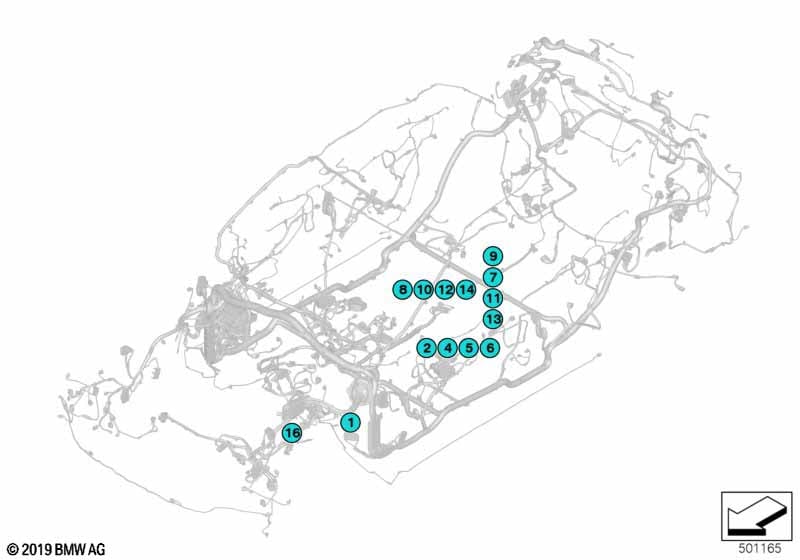

Plug connection from M232*1B-->M251*1B for BMW 7 Series G12 740Li (2018)
This Plug connection from M232*1B-->M251*1B technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| M232*1B - Cntrl.locking drive, tailboard | ||||||||||
| 01 | Universal socket housing uncoded | 4-POLIG | 1 | 12527549033 | $2.53 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 4 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Cont.bush.MCON 1,2 sg.cond.seal w/cable | 0,5-0,75MM² AG | 4 | 12520056374 | Shop at ECS Tuning | |||||
