Rep.cable f.main wiring harness - rear for BMW 3 Series G20 Sedan 320i (2022)

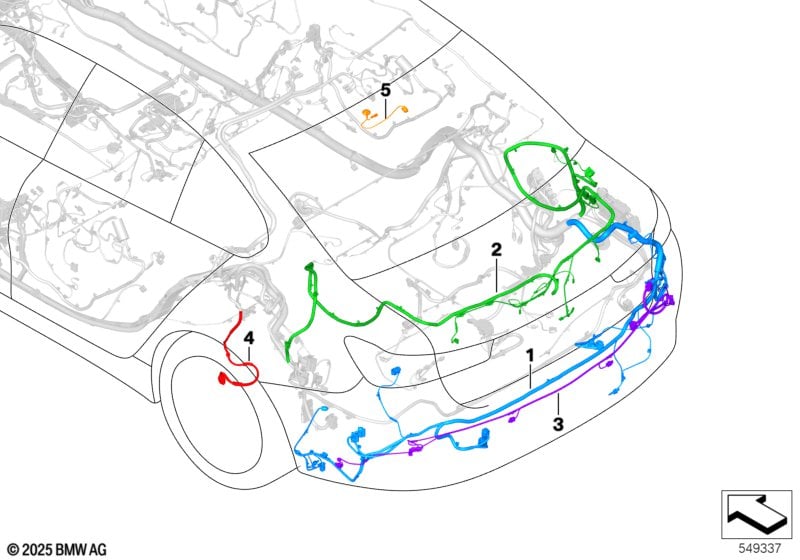

This Rep.cable f.main wiring harness - rear technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear repair wiring set | 1 | 61129835606 | Shop at ECS Tuning | ||||||
| 02 | Repair wiring set for trunk lid | 1 | 61129835604 | Shop at ECS Tuning | ||||||
| 03 | Set of cables, rear bumper | 1 | 61129436017 | Shop at ECS Tuning | ||||||
| For vehicles with M Sports package and Modell M Sport and Parking assistance system and Parking assistance system Plus and M Aerodynamics package |
P337A=Yes P7LFA=Yes S5DMA=Yes S5DNA=Yes S715A=Yes |
|||||||||
| 03 | Set of cables, rear bumper | 1 | 61129435994 | Shop at ECS Tuning | ||||||
| 04 | Cable electromech. parking brake left | 1 | 61115A07236 | Shop at ECS Tuning | ||||||
| 04 | Cable, electric parking brake, right | 1 | 61115A07237 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 320i Rep.cable f.main wiring harness - rear?
- This technical diagram illustrates the Rep.cable f.main wiring harness - rear within the Vehicle electrical system group for the 3 Series G20 Sedan 320i produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Rear repair wiring set (Part #61129835606).
- Which models use the hardware listed in this Rep.cable f.main wiring harness - rear?
- The hardware and components featured in the Rep.cable f.main wiring harness - rear are specific to the 3 Series G20 Sedan 320i produced during 2022. These technical specifications ensure that parts like the Rear repair wiring set (61129835606) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rep.cable f.main wiring harness - rear assembly?
- Each item in the Rep.cable f.main wiring harness - rear corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 320i, you can identify the Rear repair wiring set by locating its position on the schematic, which then links to the official BMW part number 61129835606 for the Vehicle electrical system section.
