Plug connection from S1*1B-->S166*1B for BMW 7 Series G11 730d (2019)

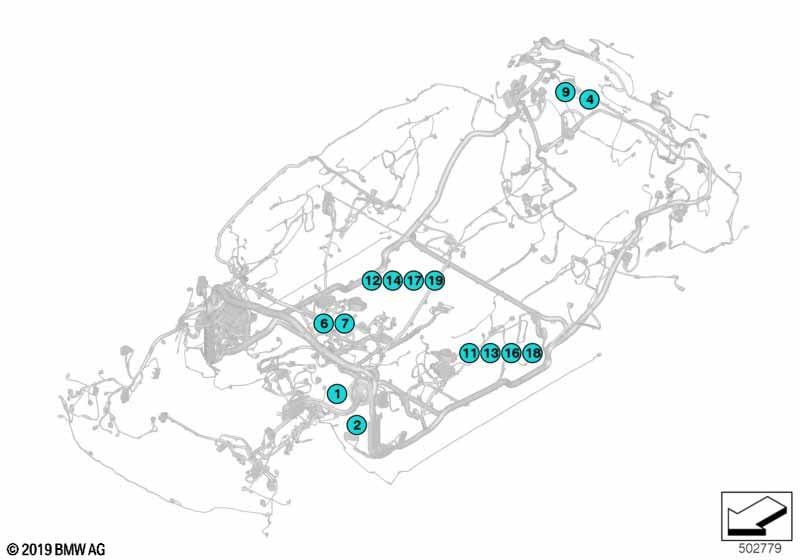

This Plug connection from S1*1B-->S166*1B technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| S1*1B - brake fluid level switch | ||||||||||
| 01 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| S114*1B - Refueling button | ||||||||||
| 02 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| S136*1B - control panel Audio | ||||||||||
| 06 | Universal socket housing uncoded | 8 POL. | 1 | 61136954526 | $3.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 6 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 6 | 61138727251 | Shop at ECS Tuning | |||||
| S137*1B - operating unit heater AC system |
||||||||||
| 07 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| S142*1B - pressure switch | ||||||||||
| 09 | Rep. kit for socket housing | 3 POL. | 1 | 61132359997 | Shop at ECS Tuning | |||||
