Plug connection from S17*1B-->S276*1B for BMW 3 Series G20 Sedan 330eX (2022)

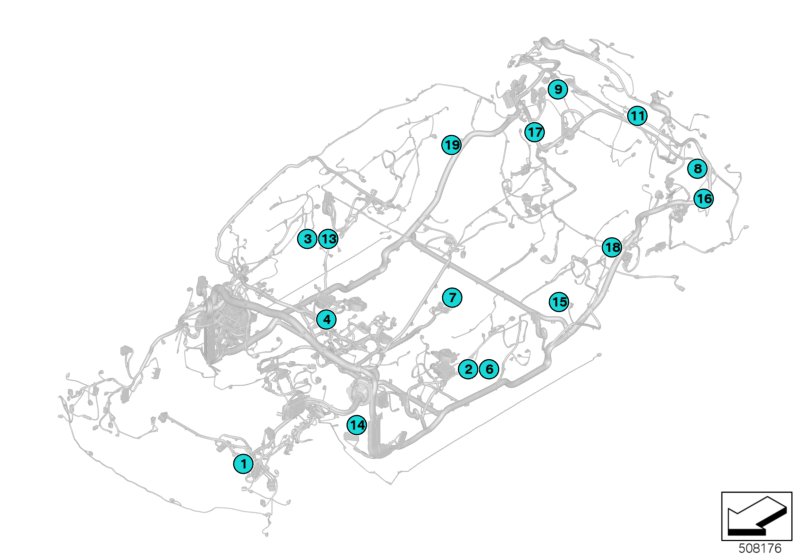

This Plug connection from S17*1B-->S276*1B technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| S17*1B - hood contact switch | ||||||||||
| 01 | Rep. kit for socket housing | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| S179*1B - central locking button passenger |
||||||||||
| 03 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| S19*1B - Switch block, seat at driver's door |
||||||||||
| 06 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| S205*1B - Button, remote backrest unlocking left |
||||||||||
| 08 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| S208*1B - Button, remote backrest unlocking, right |
||||||||||
| 09 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| S21*1B - tailgate button on trunk lid | ||||||||||
| 11 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| S25*1B - brake light switch | ||||||||||
| 14 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
