Plug connection from S33*1B-->S43*1B for BMW XM G09 XM (2025)

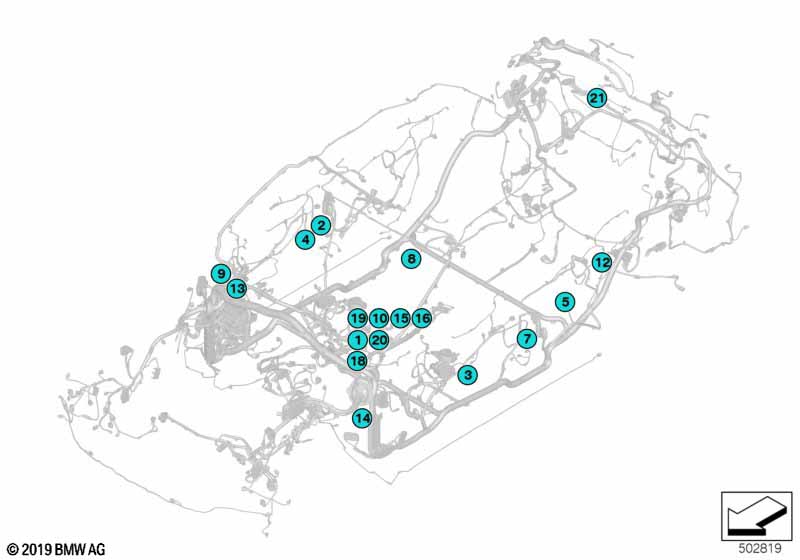

This Plug connection from S33*1B-->S43*1B technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| S40*1B - door lock driver's door | ||||||||||
| 07 | Socket housing | 8-POLIG | 1 | 12527615376 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Dummy grommet | MQS Ø=3,6 | 3 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 5 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCON 1.2 with cable | 0,25-0,35MM² AG | 5 | 12520056954 | Shop at ECS Tuning | |||||
