Plug connection from X13101S-->X15591B for BMW 7 Series G12 740Li (2019)

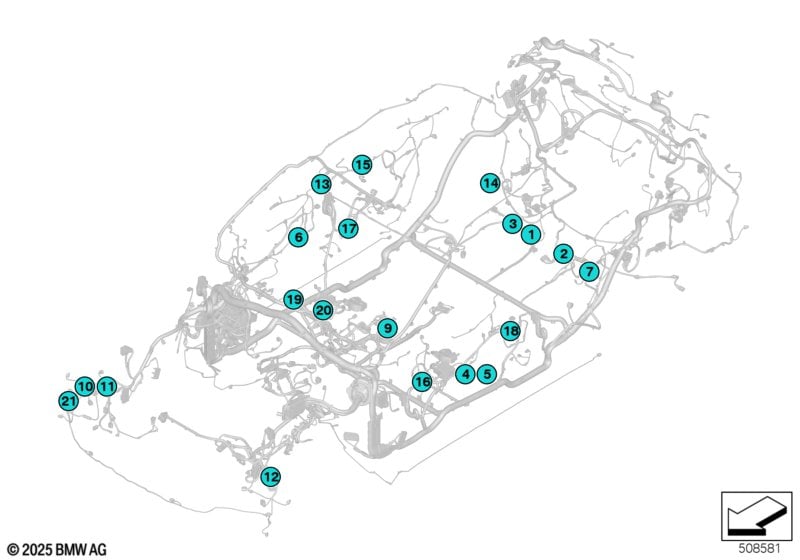

This Plug connection from X13101S-->X15591B technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| X1319*1B - seat, rear left | ||||||||||
| 02 | Socket housing, uncloded | 12 POL. | 1 | 61139130246 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 28 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 6 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 6 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| X1320*1B - seat, rear right | ||||||||||
| 03 | Rep. kit for socket housing | 26 POL. | 1 | 61132471242 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 2 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 12 | 61130056961 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 12 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| X14*1B - driver's seat | ||||||||||
| 04 | Covering cap | GELB | 1 | 61139328853 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,35-0,5 MM² SN | 2 | 61130056946 | Shop at ECS Tuning | |||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² SN | 2 | 61130056947 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 4 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AG | 4 | 61130085034 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AU | 4 | 61130086268 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 10 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Socket housing | 44-POLIG | 1 | 61139328855 | Shop at ECS Tuning | |||||
| X148*2B - Plug connector, front end right |
||||||||||
| 11 | Universal socket housing uncoded | 15POL. | 1 | 12527590358 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 3 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 12 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCON 1.2 with cable | 0,25-0,35MM² AG | 12 | 12520056954 | Shop at ECS Tuning | |||||
| -- | Cont.bush.MCON 2,8 sg.cond.seal w/cable | 1,5-2,5MM² AG | 3 | 12520070573 | Shop at ECS Tuning | |||||
| X148*1S - Plug connector, front end right |
||||||||||
| 11 | Pin terminal | 15POL. | 1 | 12527590365 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Pin contact MCON 1.2 ELA with cable | 0,5-0,75MM² AG | 5 | 61130056959 | Shop at ECS Tuning | |||||
| -- | Pin contact MCON 1.2 ELA with cable | 0,13-0,35MM² AG | 7 | 61130078160 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 7 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 8 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Flat spring contact JPT ELA with cable | 0,5-1,0 MM² AG | 3 | 12520086269 | Shop at ECS Tuning | |||||
| X149*1B - Plug connector front end left |
||||||||||
| 12 | Universal socket housing uncoded | 12 POL. | 1 | 61138373632 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AG | 10 | 61130085034 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | MQS Ø=3,6 | 2 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 10 | 61138727251 | Shop at ECS Tuning | |||||
| X149*2B - Plug connector, front end left |
||||||||||
| 12 | Universal socket housing uncoded | 8 POL. | 1 | 61138364624 | $4.07 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,2-0,35 MM² AG | 6 | 61130085034 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | MQS Ø=3,6 | 2 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 6 | 61138727251 | Shop at ECS Tuning | |||||
| X149*1S - Plug connector, front end left |
||||||||||
| 12 | Pin terminal | 12 POL./SCHWARZ | 1 | 61138387220 | $5.75 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pin contact MQS ELA with cable | 0,2-0,35 MM² AG | 10 | 61130086267 | Shop at ECS Tuning | |||||
| -- | Dummy grommet | MQS Ø=3,6 | 2 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 10 | 61138727251 | Shop at ECS Tuning | |||||
| X150*1B - Plug connector, audio I | ||||||||||
| 14 | Universal socket housing uncoded | 10 POL. | 1 | 61136909008 | $1.82 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 8 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 8 | 61138727252 | Shop at ECS Tuning | |||||
| X1511*3B - Plug connector panoramic roof |
||||||||||
| 15 | Socket housing | 4 POL. KOD A | 1 | 61139245024 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS with cable | 0,2-0,35 MM² AG | 2 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 1 | 61138727252 | Shop at ECS Tuning | |||||
| X1511*1B - Plug connector, panoramic roof |
||||||||||
| 15 | Socket housing, uncloded | 12 POL. | 1 | 12527550521 | $3.23 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MLK 1,2 with cable | 0,35 MM² AG | 2 | 61130087138 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Socket terminal SLK 2.8 with wire | 1,0-2,5 MM²/AG | 2 | 12522462173 | Shop at ECS Tuning | |||||
| -- | Socket terminal SLK 2.8 with wire | 0,5-0,75 MM² AG | 2 | 12522466585 | Shop at ECS Tuning | |||||
