Ethernet switch box for BMW 1 Series F40 M135iX (2024)

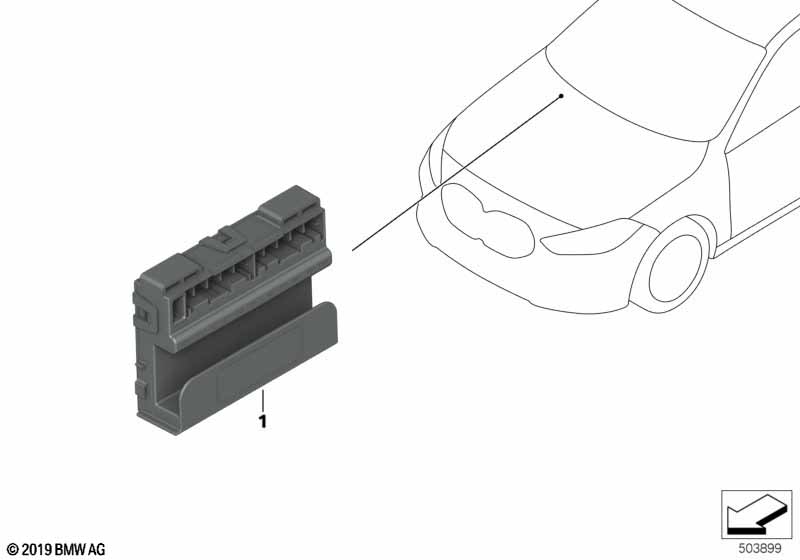

This Ethernet switch box technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 M135iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with TV function |
S601A=No |
||||||||
| For vehicles with BMW Live dashboard Plus and BMW Live dashboard Professional |
S6U2A=No S6U3A=No |
|||||||||
| 01 | Ethernet switch box | 4-PORT | 1 | 07/2020 | 61355A0A438 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Carrier housing | 1 | 07/2020 | 61139368538 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F40 M135iX Ethernet switch box?
- This technical diagram illustrates the Ethernet switch box within the Vehicle electrical system group for the 1 Series F40 M135iX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Ethernet switch box (Part #61355A0A438).
- Which models use the hardware listed in this Ethernet switch box?
- The hardware and components featured in the Ethernet switch box are specific to the 1 Series F40 M135iX produced during 2024. These technical specifications ensure that parts like the Ethernet switch box (61355A0A438) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ethernet switch box assembly?
- Each item in the Ethernet switch box corresponds to the numbered list below the illustration. For the 1 Series F40 M135iX, you can identify the Ethernet switch box by locating its position on the schematic, which then links to the official BMW part number 61355A0A438 for the Vehicle electrical system section.
