Door wiring harness for BMW MINI F56 LCI JCW (2024)

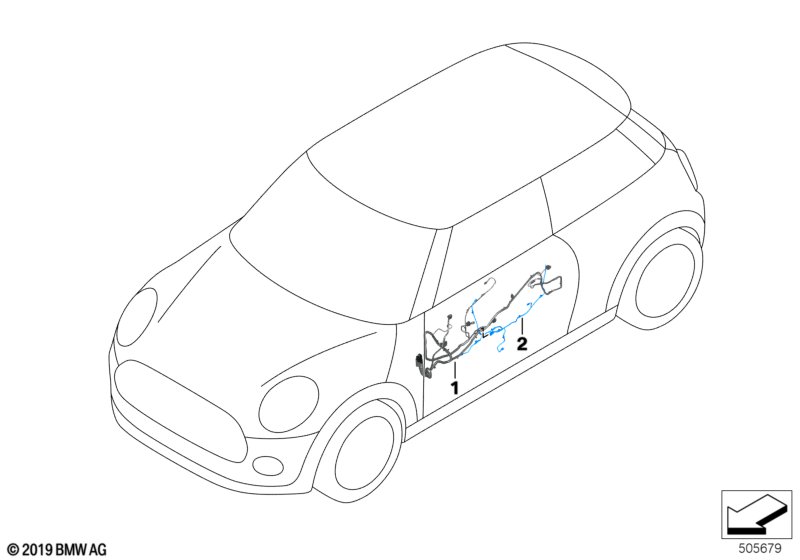

This Door wiring harness technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Driver's side door cable harness | 1 | 61125A17C76 | Shop at ECS Tuning | ||||||
| 01 | Co-driver's side door cable harness | 1 | 61125A17C94 | Shop at ECS Tuning | ||||||
| For vehicles with Fold-in outside mirror and Interior/outside mirror with auto dip |
S313A=Yes S430A=Yes |
|||||||||
| 01 | Driver's side door cable harness | 1 | 61125A17C78 | Shop at ECS Tuning | ||||||
| 01 | Co-driver's side door cable harness | 1 | 61125A17C96 | Shop at ECS Tuning | ||||||
| For vehicles with Fold-in outside mirror and Interior/outside mirror with auto dip |
S313A=Yes S430A=No |
|||||||||
| 01 | Driver's side door cable harness | 1 | 61125A17C78 | Shop at ECS Tuning | ||||||
| 01 | Co-driver's side door cable harness | 1 | 61125A17C96 | Shop at ECS Tuning | ||||||
| For vehicles with Fold-in outside mirror and Interior/outside mirror with auto dip |
S313A=No S430A=Yes |
|||||||||
| 01 | Driver's side door cable harness | 1 | 61125A17C78 | Shop at ECS Tuning | ||||||
| 01 | Co-driver's side door cable harness | 1 | 61125A17C96 | Shop at ECS Tuning | ||||||
| For vehicles with Ambient interior lighting |
S4URA=Yes |
|||||||||
| 02 | Door wir.har.adapter front driver's side | 1 | 61125A13FD5 | Shop at ECS Tuning | ||||||
| 02 | Door wir.harn.ad.front passenger's side | 1 | 61125A13FD3 | Shop at ECS Tuning | ||||||
