Rep.cable f.main wiring harness - front for BMW MINI F56 LCI Cooper (2024)

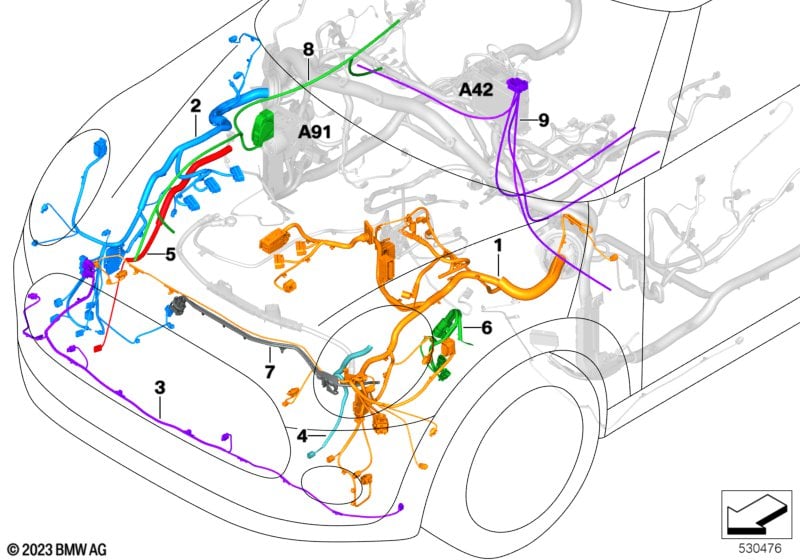

This Rep.cable f.main wiring harness - front technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front left repair wiring set | 1 | 61115A42114 | Shop at ECS Tuning | ||||||
| 02 | Front right repair wiring set | 1 | 61115A42115 | Shop at ECS Tuning | ||||||
| 03 | Wiring set PDC, front | 1 | 61128715573 | Shop at ECS Tuning | ||||||
| 04 | Adapter wire, outside temperature sensor | 1 | 61129314636 | Shop at ECS Tuning | ||||||
| 05 | Adapter cable, active air-flap control | 1 | 61129391877 | Shop at ECS Tuning | ||||||
| 06 | Adapter lead EPS | 1 | 61115A13F13 | Shop at ECS Tuning | ||||||
| 07 | Rep. wiring harness for electric fan | 300W-400W | 1 | 61115A31B49 | Shop at ECS Tuning | |||||
| 07 | Rep. wiring harness for electric fan | 600W | 1 | 61115A31B50 | Shop at ECS Tuning | |||||
| 07 | Rep. wiring harness for electric fan | 850W | 1 | 61115A31B51 | Shop at ECS Tuning | |||||
| 09 | Wiring repair kit, head unit | 1 | 61115A0B962 | Shop at ECS Tuning |
