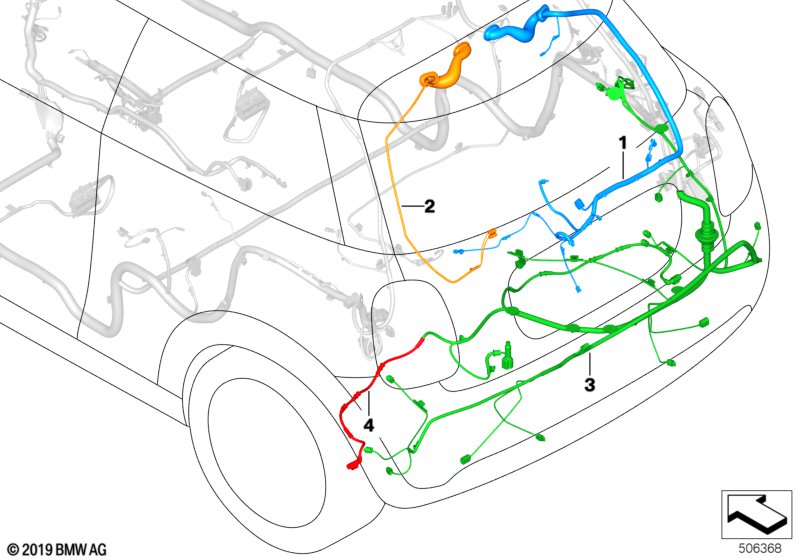

Rep.cable f.main wiring harness - rear for BMW MINI F56 LCI One (2024)
This Rep.cable f.main wiring harness - rear technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair wiring set for trunk lid | 1 | 61115A420F4 | Shop at ECS Tuning | ||||||
| 02 | Rep.module aerial lines FM2 | 1 | 61115A063D9 | Shop at ECS Tuning | ||||||
| For vehicles with DAB tuner |
S654A=Yes |
|||||||||
| 02 | Rep.module antennas DAB | 1 | 61115A063D8 | Shop at ECS Tuning | ||||||
| 03 | Rear repair wiring set | 1 | 61115A420F7 | Shop at ECS Tuning | ||||||
| 04 | Rep. cable, electric parking brake | 1 | 61115A31B91 | Shop at ECS Tuning | ||||||
