Rep.cable main wiring harness HSD for BMW MINI Cabrio F57 LCI One (2022)

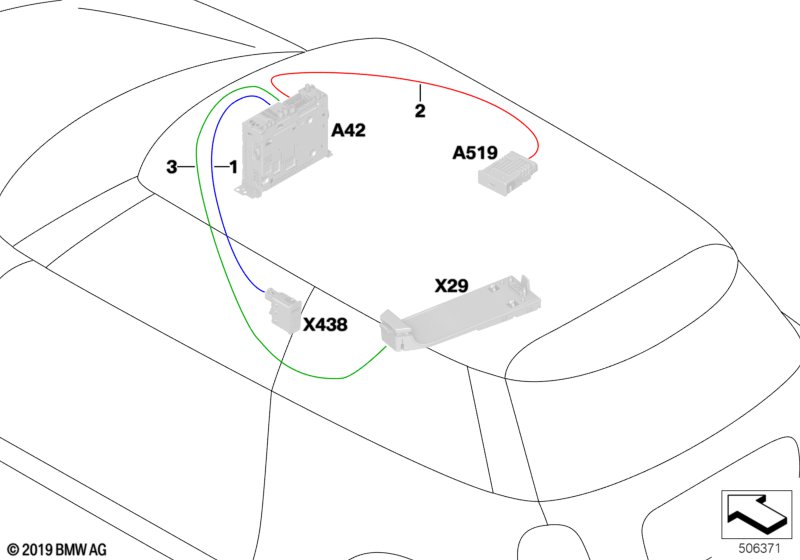

This Rep.cable main wiring harness HSD technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | HSD cable USB/aux connector | 1 | 61115A06406 | Shop at ECS Tuning | ||||||
| For vehicles with Navigation system Professional |
S609A=Yes |
|||||||||
| 01 | HSD cable USB/aux connector | 1 | 61115A31B63 | Shop at ECS Tuning | ||||||
| For vehicles with Phoning with wireless charging |
S6NWA=Yes |
|||||||||
| 02 | HSD cable USB/aux connector | 1 | 61115A06416 | Shop at ECS Tuning | ||||||
| For vehicles with Navigation system Professional and Phoning with wireless charging |
S609A=Yes S6NWA=Yes |
|||||||||
| 02 | HSD cable USB/aux connector | 1 | 61115A31B65 | Shop at ECS Tuning | ||||||
| For vehicles with Factory prep. for Flexible Car Use |
S5GCA=Yes |
|||||||||
| 03 | HSD wire | 1 | 61115A06415 | Shop at ECS Tuning | ||||||
| For vehicles with Factory prep. for Flexible Car Use and Navigation system Professional |
S5GCA=Yes S609A=Yes |
|||||||||
| 03 | HSD wire | 1 | 61115A348C2 | Shop at ECS Tuning | ||||||
