Wiring harness repair cable antenna/coax for BMW MINI F56 LCI One (2024)

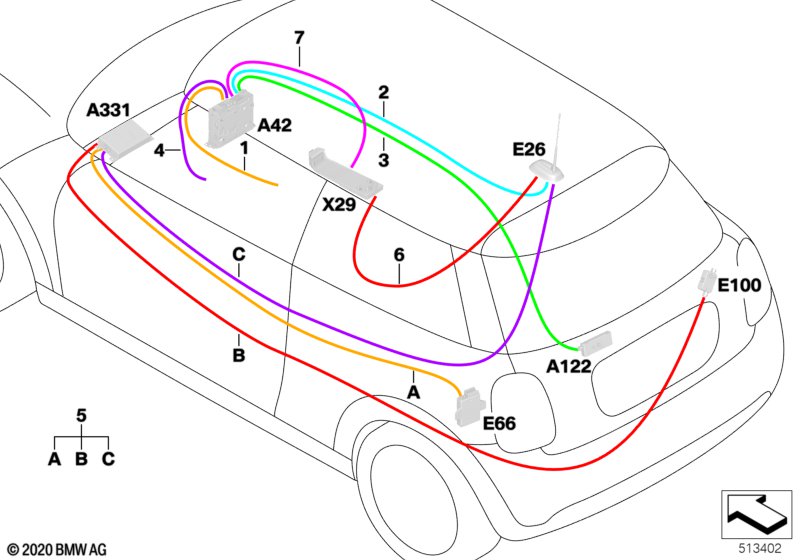

This Wiring harness repair cable antenna/coax technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Antenna cable, Bluetooth antenna | L= 730MM | 1 | 61115A06413 | Shop at ECS Tuning | |||||
| 02 | Antenna cable GPS | 1 | 61115A063B5 | Shop at ECS Tuning | ||||||
| 02 | Rep.module aerial line SDARS | 1 | 61115A063B6 | Shop at ECS Tuning | ||||||
| 02 | Rep.module aerial lines AM/ FM2 | 1 | 61115A06414 | Shop at ECS Tuning | ||||||
| 03 | Rep.module antennas DAB | 1 | 61115A063D8 | Shop at ECS Tuning | ||||||
| 03 | Rep.module aerial lines FM2 | 1 | 61115A063D9 | Shop at ECS Tuning | ||||||
| 04 | Rep. guide for WLAN cable antenna | 1 | 61119432321 | Shop at ECS Tuning | ||||||
| 05 | Rep.module antenna wires ATM | 1 | 61115A063B8 | Shop at ECS Tuning | ||||||
| 06 | Wiring harness base plate antenna | 1 | 61115A13E12 | Shop at ECS Tuning |
