Plug connection from M369*1B-->M89*1B for BMW 7 Series G12 730Ld (2019)

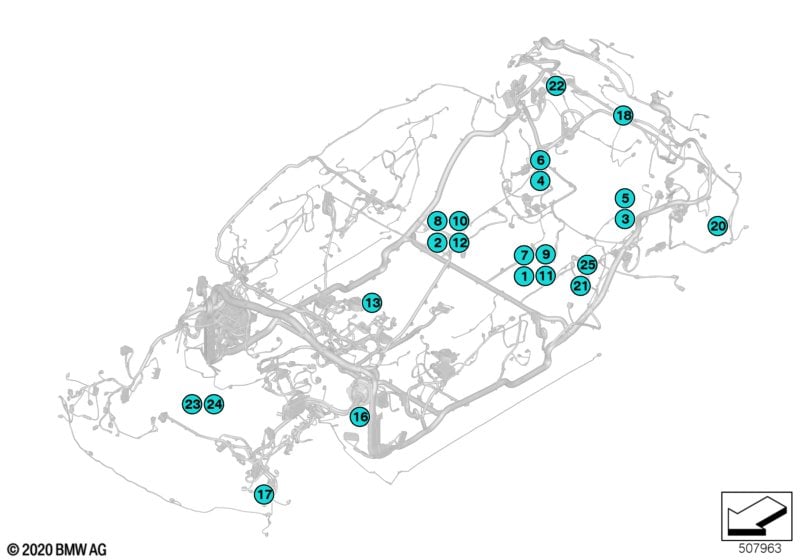

This Plug connection from M369*1B-->M89*1B technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The parts declared as being "only in combination with" parts are not considered to be absolutely necessary for an order. They serve informational purposes and can be ordered if required. All plugs/ socket housings listed blow serve as an installation overview for the component code. Refer to the "AIR" system for the exact installation location for the respective vehicle. |
|||||||||
| M44*1B - FU.metering PMP.parked-car HTG | ||||||||||
| 13 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| M5*1B - Electrical vacuum pump | ||||||||||
| 16 | Socket housing 2 pins | KOD. A | 1 | 12527574377 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Ct.bush.SLK 5.8 sgl.conductor seal w/cbl | 1,5-2,5MM² AG | 2 | 12522472159 | Shop at ECS Tuning | |||||
| M57*1B - Dr.roller sun blind, r.window | ||||||||||
| 18 | Universal socket housing uncoded | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 2 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| M6*1B - Air supply system | ||||||||||
| 20 | Socket housing | 1 | 12527508152 | $2.53 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Socket terminal SLK 2.8 ELA with wire | 0,35-0,50MM² AG | 2 | 12522471245 | Shop at ECS Tuning | |||||
| M6*2B - Air supply system | ||||||||||
| 20 | Socket housing 2 pins | KOD. A | 1 | 12527574377 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 3,5-6,0MM² | 2 | 61138727249 | Shop at ECS Tuning | |||||
| -- | Ct.bush.SLK 5.8 sgl.conductor seal w/cbl | 4,0-6,0MM² AG | 2 | 12522472168 | Shop at ECS Tuning | |||||
| M6*3B - Air supply system | ||||||||||
| 20 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| M72*1B - locking drive fuel door | ||||||||||
| 22 | Universal socket housing uncoded | 2 POL. | 1 | 12527543313 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Contact bushing MCON 1.2 with cable | 0,25-0,35MM² AG | 2 | 12520056954 | Shop at ECS Tuning | |||||
| M81*1B - Cooler shutter drive, upper | ||||||||||
| 23 | Universal socket housing uncoded | 4-POLIG | 1 | 12527549033 | $2.53 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Crimp connector with shrink-fit hose | 0,5-1,5MM² | 4 | 61138727252 | Shop at ECS Tuning | |||||
| -- | Cont.bush.MCON 1,2 sg.cond.seal w/cable | 0,5-0,75MM² AG | 4 | 12520056374 | Shop at ECS Tuning | |||||
| M89*1B - Drive, roller sun blind, R.RT | ||||||||||
| 25 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
