High-voltage battery module for BMW 3 Series G20 Sedan LCI 330e (2025)

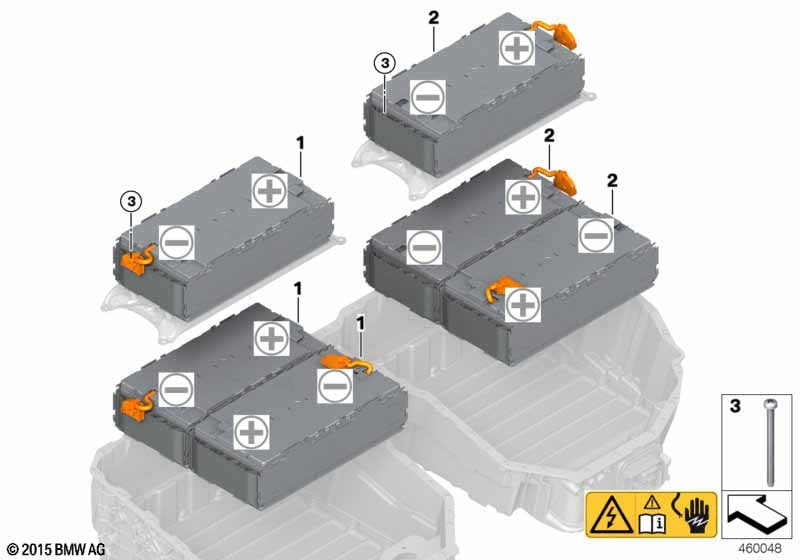

This High-voltage battery module technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cell module, high-voltage battery | 34AH NEG | 3 | 61278877427 | Shop at ECS Tuning | |||||
| 02 | Cell module, high-voltage battery | 34AH POS | 3 | 61278877428 | Shop at ECS Tuning | |||||
| 03 | ISA screw | M6 GFX85-10.9-S | 24 | 61278606057 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan LCI 330e High-voltage battery module?
- This technical diagram illustrates the High-voltage battery module within the Vehicle electrical system group for the 3 Series G20 Sedan LCI 330e produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Cell module, high-voltage battery (Part #61278877427).
- Which models use the hardware listed in this High-voltage battery module?
- The hardware and components featured in the High-voltage battery module are specific to the 3 Series G20 Sedan LCI 330e produced during 2025. These technical specifications ensure that parts like the Cell module, high-voltage battery (61278877427) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the High-voltage battery module assembly?
- Each item in the High-voltage battery module corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan LCI 330e, you can identify the Cell module, high-voltage battery by locating its position on the schematic, which then links to the official BMW part number 61278877427 for the Vehicle electrical system section.
