High-voltage battery module braces for BMW 3 Series G20 Sedan LCI 330e (2024)

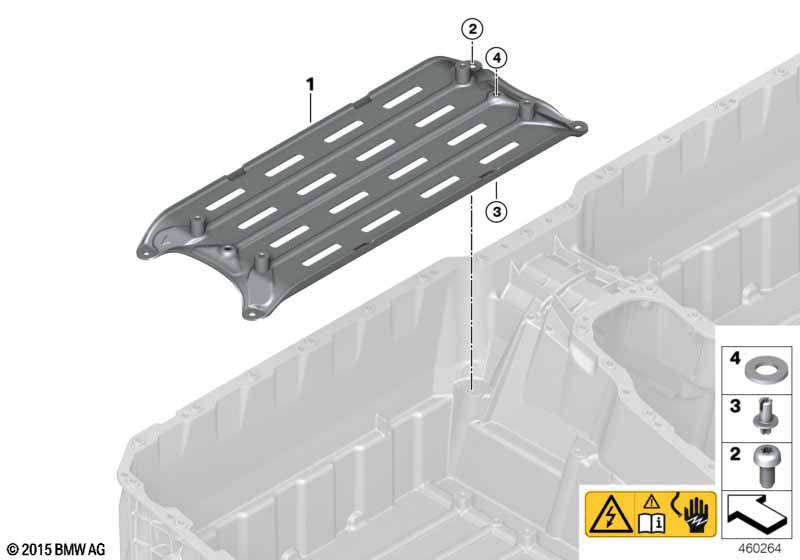

This High-voltage battery module braces technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Module reinforcement brace | 2 | 61278616567 | Shop at ECS Tuning | ||||||
| 02 | ISA screw | V-M6GFX16 | 8 | 07129908570 | Shop at ECS Tuning | |||||
| 03 | Cooler locating stud | 4 | 61278610833 | Shop at ECS Tuning | ||||||
| 04 | Plastic washer | 10X5.8X1.5-PA6 | 4 | 61278638444 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan LCI 330e High-voltage battery module braces?
- This technical diagram illustrates the High-voltage battery module braces within the Vehicle electrical system group for the 3 Series G20 Sedan LCI 330e produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Module reinforcement brace (Part #61278616567).
- Which models use the hardware listed in this High-voltage battery module braces?
- The hardware and components featured in the High-voltage battery module braces are specific to the 3 Series G20 Sedan LCI 330e produced during 2024. These technical specifications ensure that parts like the Module reinforcement brace (61278616567) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the High-voltage battery module braces assembly?
- Each item in the High-voltage battery module braces corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan LCI 330e, you can identify the Module reinforcement brace by locating its position on the schematic, which then links to the official BMW part number 61278616567 for the Vehicle electrical system section.
