High-voltage battery vent unit for BMW 5 Series G30 LCI 530e (2023)

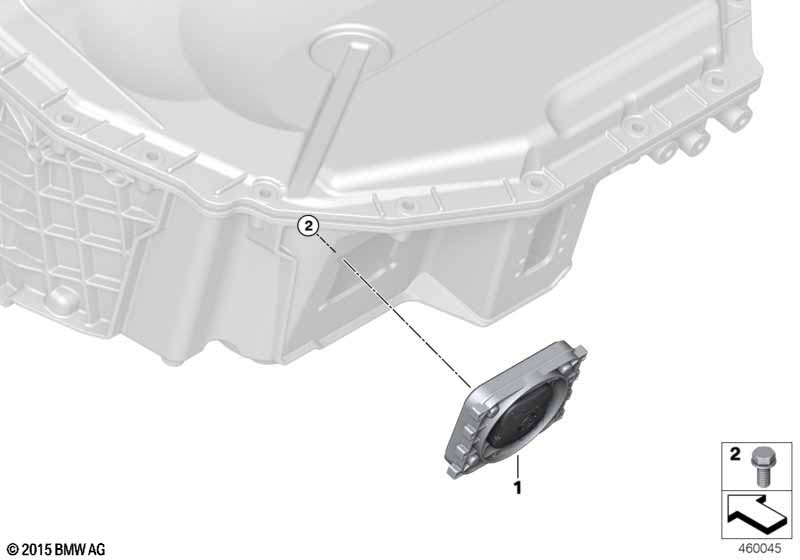

This High-voltage battery vent unit technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vent unit | 1 | 61278608564 | Shop at ECS Tuning | ||||||
| 02 | Hex bolt | M5X10 | 4 | 07119906043 | $2.84 | Shop at ECS Tuning |
