High-voltage battery safety box for BMW 5 Series G30 LCI 530eX (2023)

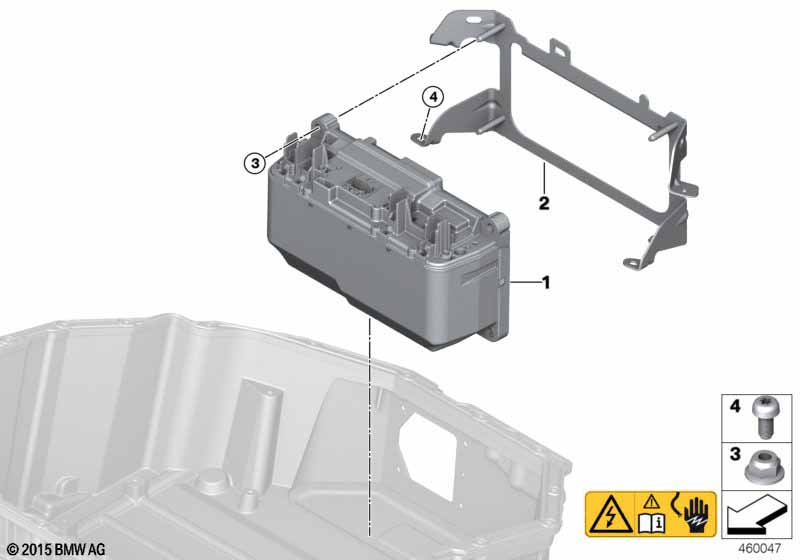

This High-voltage battery safety box technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Safety box high-voltage battery | 1 | 61278857381 | Shop at ECS Tuning | ||||||
| 02 | Mount for safety box | 1 | 61278630191 | Shop at ECS Tuning | ||||||
| 03 | Self-locking hex nut | M6-8-ZNNIV SI | 4 | 07119909322 | Shop at ECS Tuning | |||||
| 04 | ISA screw | V-M6GFX16 | 4 | 07129908570 | Shop at ECS Tuning |
