12-V lithium-ion auxiliary battery for BMW 8 Series G16 Gran Coupé 840dX (2024)

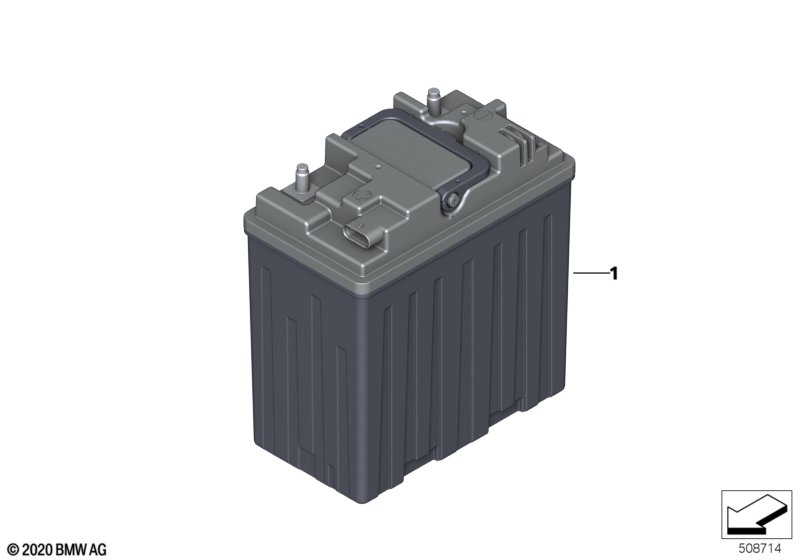

This 12-V lithium-ion auxiliary battery technical drawing provides a detailed breakdown of the assembly for the 8 Series G16 Gran Coupé 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 12-V lithium-ion auxiliary battery | 10,6AH 3.5KW | 1 | 11/2024 | 61215A8D7F0 | Shop at ECS Tuning | ||||
| 01 | 12-V lithium-ion auxiliary battery | 10,6AH 3.5KW | 1 | 61215B3F328 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series G16 Gran Coupé 840dX 12-V lithium-ion auxiliary battery?
- This technical diagram illustrates the 12-V lithium-ion auxiliary battery within the Vehicle electrical system group for the 8 Series G16 Gran Coupé 840dX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the 12-V lithium-ion auxiliary battery (Part #61215A8D7F0).
- Which models use the hardware listed in this 12-V lithium-ion auxiliary battery?
- The hardware and components featured in the 12-V lithium-ion auxiliary battery are specific to the 8 Series G16 Gran Coupé 840dX produced during 2024. These technical specifications ensure that parts like the 12-V lithium-ion auxiliary battery (61215A8D7F0) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 12-V lithium-ion auxiliary battery assembly?
- Each item in the 12-V lithium-ion auxiliary battery corresponds to the numbered list below the illustration. For the 8 Series G16 Gran Coupé 840dX, you can identify the 12-V lithium-ion auxiliary battery by locating its position on the schematic, which then links to the official BMW part number 61215A8D7F0 for the Vehicle electrical system section.
