Single wiper parts for BMW 6 Series G32 GT LCI 630iX (2024)

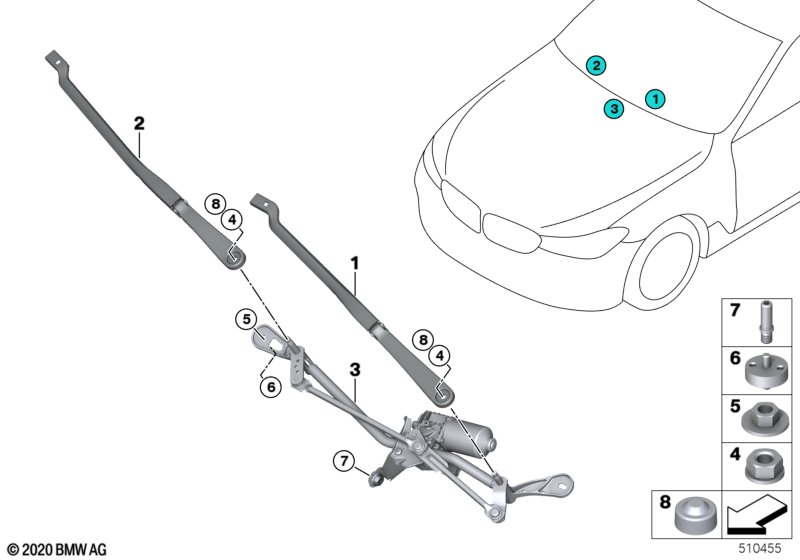

This Single wiper parts technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT LCI 630iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper arm, driver's side | 1 | 61619463868 | Shop at ECS Tuning | ||||||
| 02 | Wiper arm, passenger's side | 1 | 61619463870 | Shop at ECS Tuning | ||||||
| 03 | Linkage for wiper system with motor | 1 | 61619851356 | Shop at ECS Tuning | ||||||
| 04 | Hex nut | 2 | 07146971889 | $0.82 | Shop at ECS Tuning | |||||
| 05 | Hex nut | BM8-8-ZNS3 | 2 | 07129905095 | Shop at ECS Tuning | |||||
| 06 | Decoupling buffer | 2 | 61617293753 | Shop at ECS Tuning | ||||||
| 07 | Pin | 1 | 17137357293 | Shop at ECS Tuning | ||||||
| 08 | Covering cap | 2 | 52108119867 | $0.21 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series G32 GT LCI 630iX Single wiper parts?
- This technical diagram illustrates the Single wiper parts within the Vehicle electrical system group for the 6 Series G32 GT LCI 630iX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Wiper arm, driver's side (Part #61619463868).
- Which models use the hardware listed in this Single wiper parts?
- The hardware and components featured in the Single wiper parts are specific to the 6 Series G32 GT LCI 630iX produced during 2024. These technical specifications ensure that parts like the Wiper arm, driver's side (61619463868) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single wiper parts assembly?
- Each item in the Single wiper parts corresponds to the numbered list below the illustration. For the 6 Series G32 GT LCI 630iX, you can identify the Wiper arm, driver's side by locating its position on the schematic, which then links to the official BMW part number 61619463868 for the Vehicle electrical system section.
