Windshield cleaning container for BMW 4 Series G26 Gran Coupé 430dX (2024)

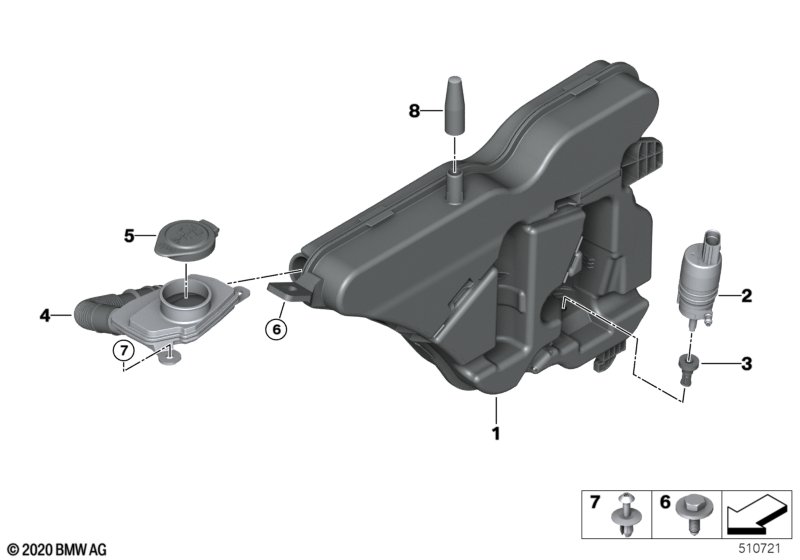

This Windshield cleaning container technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 430dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Windshield cleaning container | 1 | 61669478352 | Shop at ECS Tuning | ||||||
| 02 | Wash pump | 1 | 67127298309 | Shop at ECS Tuning | ||||||
| 03 | Strainer f wash pump | 1 | 61669465516 | Shop at ECS Tuning | ||||||
| 04 | Filler pipe | 1 | 51317497094 | Shop at ECS Tuning | ||||||
| 05 | Cover | 1 | 61667497093 | Shop at ECS Tuning | ||||||
| 06 | Self-locking hex bolt | M6 | 1 | 07146961201 | $1.17 | Shop at ECS Tuning | ||||
| 07 | Push-type nut | 2 | 61138353086 | $0.28 | Shop at ECS Tuning | |||||
| 08 | Ventilation | 1 | 61669878908 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G26 Gran Coupé 430dX Windshield cleaning container?
- This technical diagram illustrates the Windshield cleaning container within the Vehicle electrical system group for the 4 Series G26 Gran Coupé 430dX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Windshield cleaning container (Part #61669478352).
- Which models use the hardware listed in this Windshield cleaning container?
- The hardware and components featured in the Windshield cleaning container are specific to the 4 Series G26 Gran Coupé 430dX produced during 2024. These technical specifications ensure that parts like the Windshield cleaning container (61669478352) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Windshield cleaning container assembly?
- Each item in the Windshield cleaning container corresponds to the numbered list below the illustration. For the 4 Series G26 Gran Coupé 430dX, you can identify the Windshield cleaning container by locating its position on the schematic, which then links to the official BMW part number 61669478352 for the Vehicle electrical system section.
