Supply cable main wiring harness for BMW 4 Series G22 Coupé 420dX (2023)

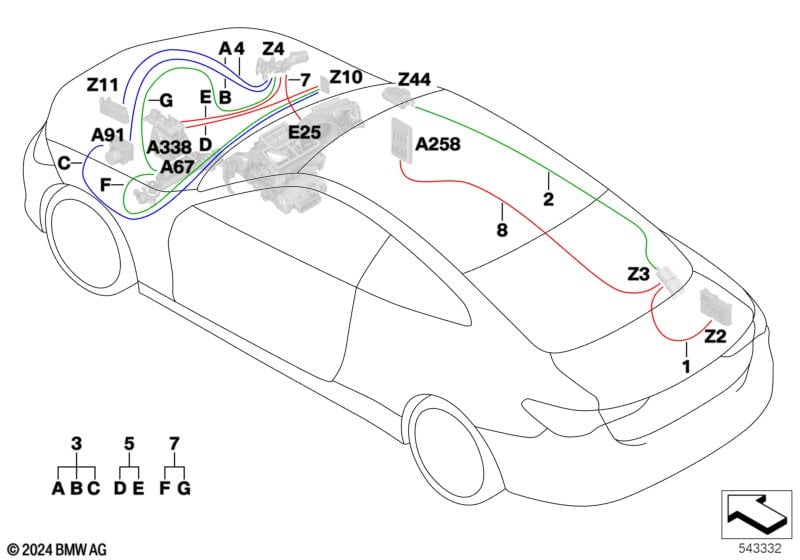

This Supply cable main wiring harness technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supply line power distribution box | 35MM²/L= 575MM | 1 | 61129835596 | Shop at ECS Tuning | |||||
| 02 | Supply line power distribution box | 1 | 61115A32548 | Shop at ECS Tuning | ||||||
| 03 | Repair module power supply lines | 1 | 61115A32538 | Shop at ECS Tuning | ||||||
| 04 | Supply line, pos.battery term.distrib. | 27MM²/L= 5093MM | 1 | 61129835613 | Shop at ECS Tuning | |||||
| 06 | Power supply line PTC auxiliary heater | 1 | 61115A3C466 | Shop at ECS Tuning | ||||||
| 07 | Rep. module EPS | 1 | 61115A12611 | Shop at ECS Tuning | ||||||
| For vehicles with Variable Sport steering |
S2VLA=Yes |
|||||||||
| 07 | Rep. module EPS | 1 | 61115A12610 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
